Description

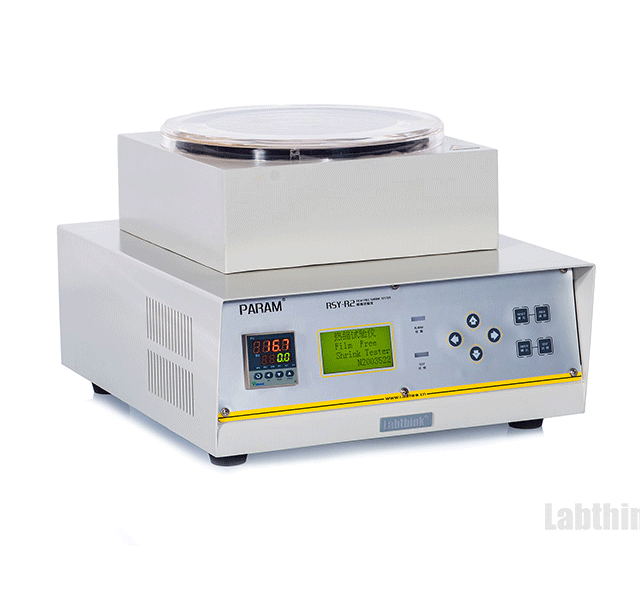

RSY-R2 Film Free Shrink Tester is designed for the heat shrinkage test and size stability test of films, heat shrinkable pipelines, medical PVC sheets, back sheets and other materials in liquid medium at various temperatures.

This instrument is professionally applicable to the determination of heat shrinking performance and dimensional stability of various films, heatshrinkable tubes, hard PVC films for tablets, and back-sheets in the fluid medium at different temperatures.

Technical Specification

Specifications	RSY-R2
Specimen Size	≤140 mm x 140 mm
Temperature Range	Room temperature ~ 200°C
Accuracy	±0.3°C
Power Supply	220VAC 50Hz / 120VAC 60Hz
Instrument Dimension	440 mm (L) x 370 mm (W) x 310 mm (H)
Net Weight	24 kg

Applications

Basic Applications	· Films The instrument can be used to test the heat shrinking performance of various films in fluid medium at different temperatures, e.g. PE heatshrinkable films used for packages of liquor, mineral water and beverages as well as PVC, POF, OPS, and PET which are available for various packages.
Basic Applications

Features

Digital P.I.D. temperature control technology ensures the preset temperature to be reached rapidly without any fluctuation
The instrument is heated through fluid medium, which could provide the stable test environment
Automatic timer function to efficiently guarantee the accuracy of test data
The instrument is controlled by micro-computer with LCD, PVC operation panel, and menu interface
Standard clamp wire mesh support could make the test done smoothly
