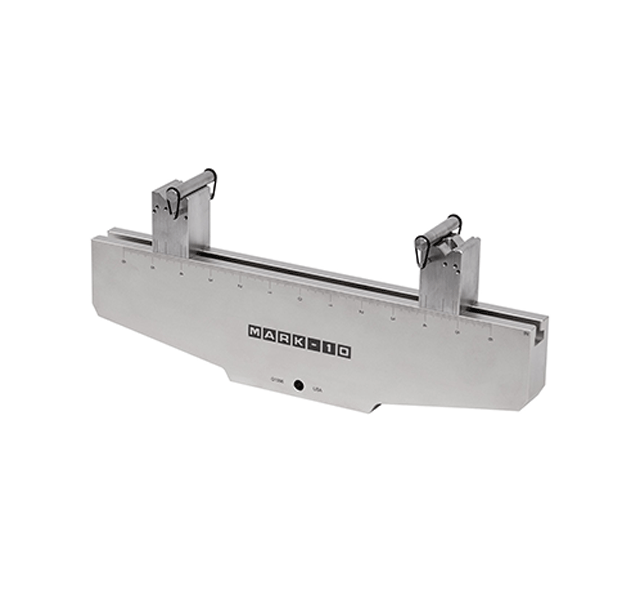

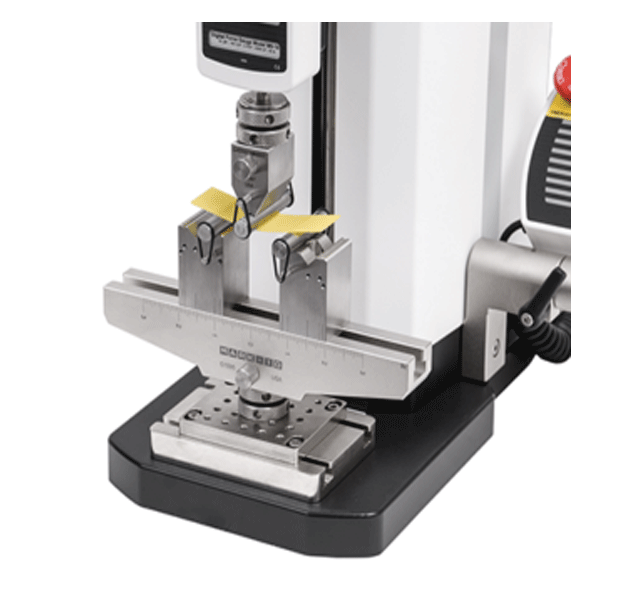

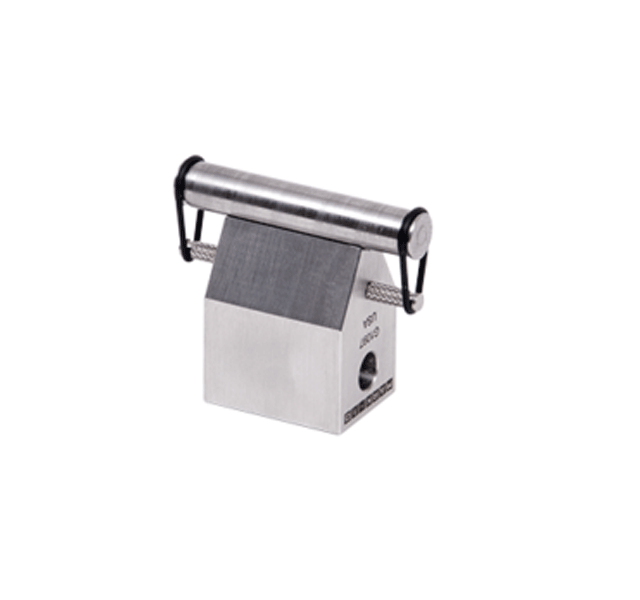

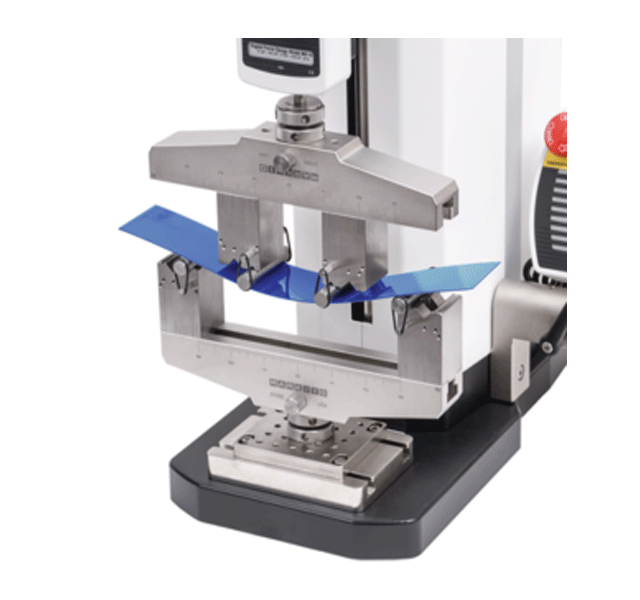

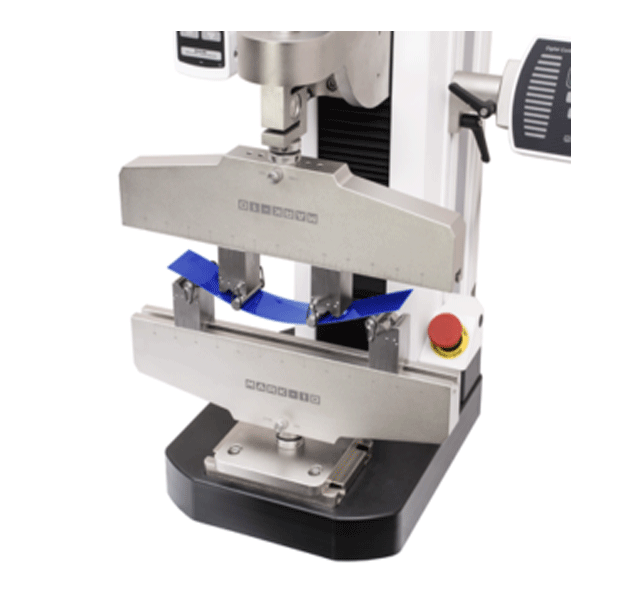

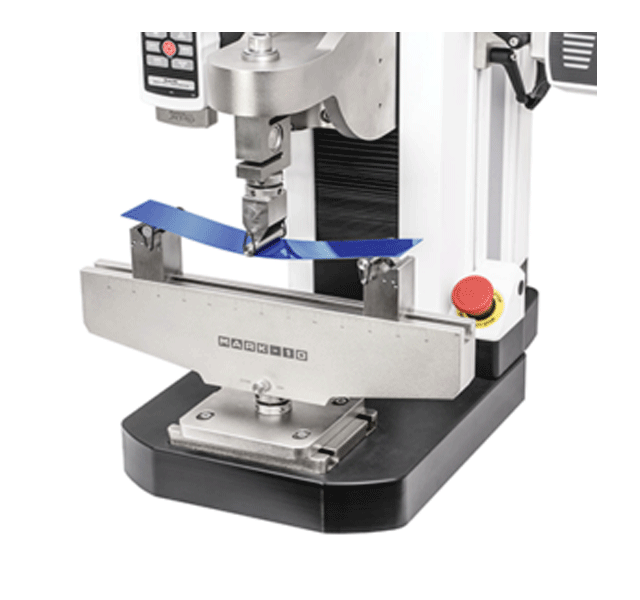

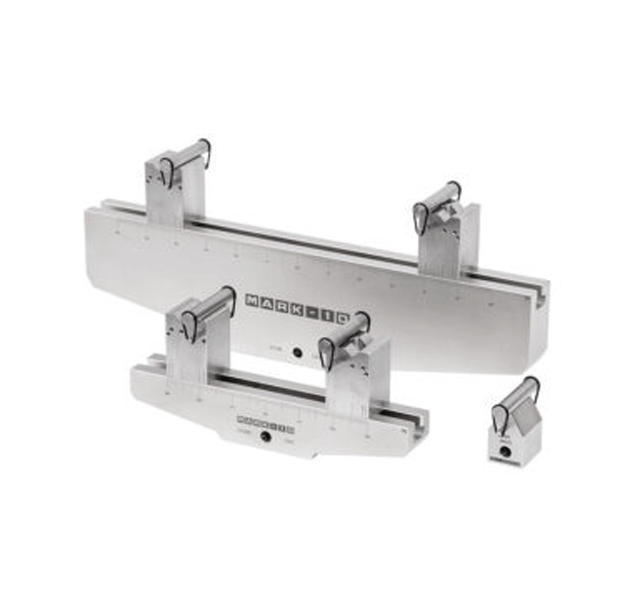

This family of bend fixtures is designed for 3-point and 4-point bend testing of plastics, metals, ceramics, tubing, and many other materials. Two base sizes are available, along with an upper anvil, and optional roller diameters. Use a base-anvil combination for 3-point bend testing or two bases for 4-point bend testing. The fixtures conform to ASTM C393, C1161, D790, and related standards.
Bases feature movable blocks with multiple V-grooves to accept several roller diameters. 10 mm dia. rollers are included, and other sizes are available.

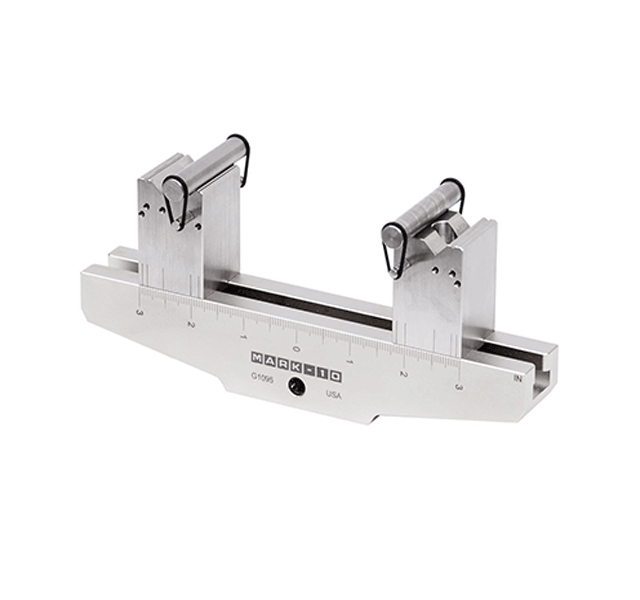

The bases feature engraved rulers, dual-graduated with an inch scale on one side and mm scale on the other. Includes integrated eye end mounting, and requires an eye end adapter to mount to Mark-10 force gauges or force sensors, and test stands. The bases also include thru-holes and mounting screws for direct mounting to certain test stands.
Features:
-
Designed for 3-point and 4-point bend testing
-
Accommodate a broad sample size range
-
Rugged design
-
Dual graduated rulers - in and mm
-
Recommended for use with a motorized test stand.
-
May be used with eye end adapters or mounted to test stands with mounting screws (except anvil - eye end mounting only).
Specification :-
|
Model
|
Capacity
lbF [kN]
|
Weight*
lb [kg]
|
Shipping Weight
lb [kg]
|
Housing material
|
Block material
|
Support material
|
Includes
|
|
G1095
|
500
[2.5]
|
3.0
[1.3]
|
4.0
[1.8]
|
2024 Al
|
303 SS
|
416 SS, hardened
|
Screws for test stand mounting, two 10 mm dia. supports and o-rings
|
|
G1096
|
2,000
[10]
|
7.1
[3.2]
|
9.0
[4.1]
|
2024 Al
|
303 SS
|
416 SS, hardened
|
Screws for test stand mounting, two 10 mm dia. supports and o-rings
|
|
G1097
|
2,000
[10]
|
0.5
[0.2]
|
1
[0.5]
|
303 SS
|
-
|
416 SS, hardened
|
10 mm. dia. support and o-rings
|
* including two blocks and 10 mm dia. Supports
Optional Equipment :-
 |
Support kits
1 mm, 2 mm, and 5 mm diameter kits accommodateother testing requirements. Each kit includes four supports and eight o-rings.
Contact Mark-10 for custom sizes up to 15 mm.
|
 |
Eye end adapters
Allow for quick grip installation and removal, and prevent grip rotation.
Mount to common test frames, load cells, and force gauges.
|
