Description

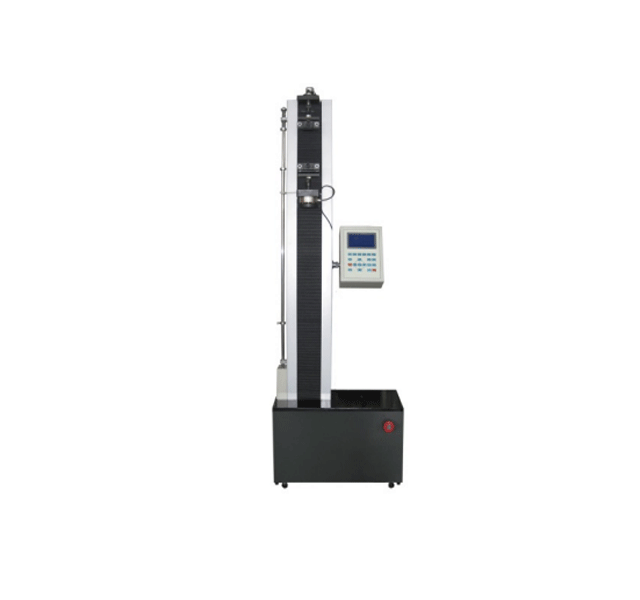

ATT_01 Tensile Strength Testing Machine

Tensile Strength Testing Machine ATT_01 is used to test tensile strength, peel strength, deformation rate , tear strength, heat seal strength and other performance of plastic films, laminated films,paper and other products. Tensile Strength Testing Machine ATT-01 has automatic control mode, with infinitely variable test speed 1-500mm / min. It is a cost-effective multi-function testing machine and widely used in packing plants, adhesive products factory, quality control and other institutions

CHARACTERISTICS

Independent test modes: tensile strength, peeling force, tearing force and other force properties;
Micro-computer control with PVC operation panel and large LCD display;
1-500mm/mm infinitely variable speed;
Parameter setting, printing, view data, reset, calibration and other functions;
Computer, microcomputer double operating systems;
Professional testing software with function of testing data storage, analyze;
Intelligent designs of over-travel protection;
Overload protection and automatic position reset;
Power failure memory for safe test operation.

TESTING PRINCIPLE

The pre-conditioned specimen is mounted between two grips, which move in relative direction during the test. The changes of force and displacement are separately recorded by the load cell fixed on the driven grip and the ruler shown on the stand column. The tensile strength, tear strength and elongation rate can be obtained by further calculation.

TECHNICAL INDEXES
