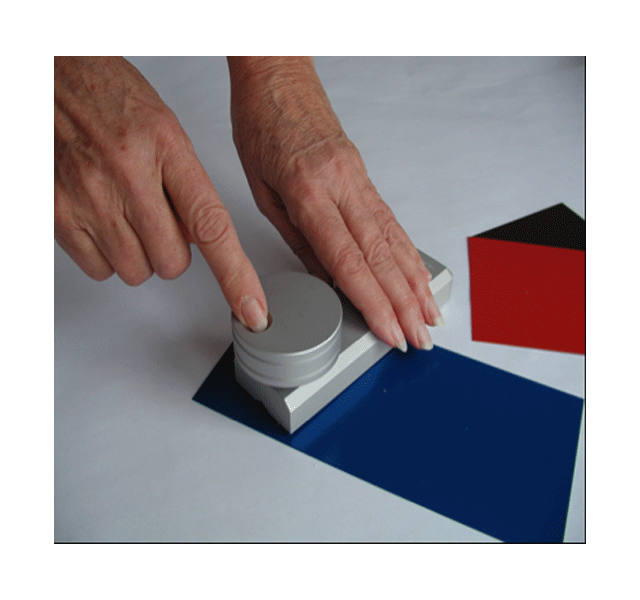

Säberg Coating Drill for measurement "on site" and in the lab.
The Säberg Coating Drill, or Coating Drill for short, is based on a patent: a layer gauge for accurate determination of the various individual layers, e.g. primer, intermediate coat and cover coat, "on site" or in the lab, and on different types of substrates such as steel, galvanized steel, wood and concrete.
The layer measurement is basically carried out according to ISO 2808. A small hole is drilled and a measuring microscope is used. measuring range 2μm-2000μm.
The measurement method has been further developed with a computerized system for Coating Drill, which allows you to measure individual layers as well as visualize, photo-document and store the status (thickness and color) of the different layers.
ENGLISH: Säberg Coating Drill or short Coating Drill is an innovation based on patents. An instrument for accurate measurements, "on site" or on lab, of individual layers: primer, under coat and top coat on different substrates like steel, galvanized steel, wood, concrete and plastic.
The fim thickness measurement is carried out according to ISO 2808. You bore a small hole and use a measuring microscope. Measuring range 2µm - 2000µm.
A further development of the method is a computerized system for Coating Drill where you can measure individual coating films and visualize, make photo documentation and store the status of the different films (thickness and color).
