Description

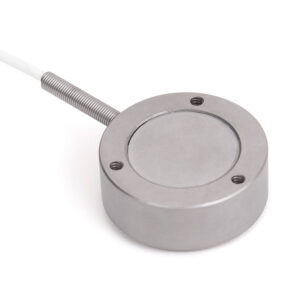

Compression Force Sensors Series R02

Button sensors for compressive loads of up to 10,000 lbF (50 kN). Compact and rugged, the R02 is ideal for heavy duty applications with space constraints.

Requires a Mark-10 indicator, available separately.

Features

Member of the Plug & Test® family of interchangeable sensors and indicators
Small size Stainless steel construction
NIST-traceable certificate of calibration with data is included. If the sensor is ordered with an indicator, a certificate for the set (indicator + sensor) can be supplied upon request, at no additional charge.
Warranty: 3 years

Specifications

Accuracy :- ± 0.5% of full scale + indicator
Weight :- 0.4 lb [0.2 kg]
Shipping weight :- 2 lb [0.9 kg]
HS code :- MR02 (all models):- 9024900000
ECCN :- EAR99
Country of origin:- USA

Download Datasheet

Compression Force Sensors Series R02

Gallery

Video

Standards

Models

With Models 7i and 5i Indicator

Capacity x Resolution
Model	lbF	ozF	gF	kgF	N	kN
MR02-100	100 x 0.05	1600 x 1	50000 x 20	50 x 0.02	500 x 0.2	-
MR02-200	200 x 0.1	3200 x 2	-	100 x 0.05	1000 x 0.5	1 x 0.0005
MR02-500	500 x 0.2	8000 x 5	-	250 x 0.1	2500 x 1	2.5 x 0.001
MR02-1000	1000 x 0.5	16000 x 10	-	500 x 0.2	5000 x 2	5 x 0.002
MR02-2000	2000 x 1	32000 x 20	-	1000 x 0.5	10000 x 5	10 x 0.005
MR02-5000	5000 x 2	-	-	2500 x 1	25000 x 10	25 x 0.01
MR02-10000	10000 x 5	-	-	5000 x 2	50000 x 25	50 x 0.02

With Model 3i Indicator

Capacity x Resolution
Model	lbF	kgF	N	kN
MR02-100	100 x 0.1	50 x 0.05	500 x 0.5	-
MR02-200	200 x 0.2	100 x 0.1	1000 x 1	-
MR02-500	500 x 0.5	250 x 0.2	2500 x 2	-
MR02-1000	1000 x 1	500 x 0.5	5000 x 5	-
MR02-2000	2000 x 2	1000 x 1	10000 x 10	-
MR02-5000	5000 x 5	2500 x 2	-	25 x 0.02
MR02-10000	10000 x 10	5000 x 5	-	50 x 0.05
