Dust Tape Test
P4001. Dust Tape Test. Includes Dust Test Tape & Dust Test Comparator
The Dust Tape Test using the Dust Test Tape and Dust Test Comparator will allow you to assess the quantity and size of dust particles on blast-cleaned steel.
Dust particles on blast-cleaned steel surfaces may reduce the adhesion of applied coatings, and by absorbing moisture may promote the corrosion of the steel surface.

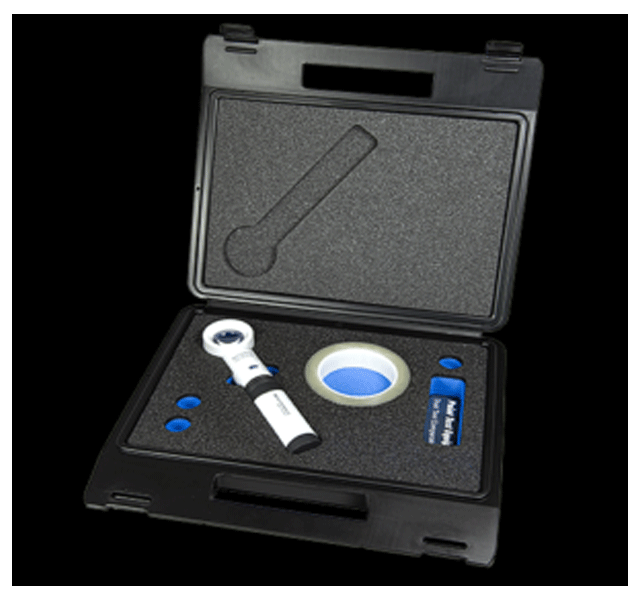

All items are supplied in an industrial Carrying Case with Dust Test Tape (60m), Dust Test Comparator and X10 Illuminated Magnifier.
Compliant to ISO 8502-3.
Technical Specification
Accumulation of dust particles occurs more naturally on horizontal surfaces, the interior of pipes and in structural cavities. Inspection should be carried out to ensure that such areas are adequately cleaned and free from dust particles before painting.
The pressure-sensitive Dust Test Tape is pressed onto the steel surface prepared for painting. The Tape with the dust particles adhering to it is removed and placed on the Dust Test Comparator in a section which contrasts to that of the dust particles and is examined visually. The quantity of dust particles adhering to the Tape and the dust particle size is then compared.
The Dust Test Comparator shows 5 classifications of dust particles and 4 sections of contrasting backgrounds where the Tape can be applied.
