1,500 lbF [6.7 kN]
32 in [813 mm] travel
ESM1500 single-column force testers are highly configurable solutions for tension and compression measurement applications, with capacities of 1,500 lbF (6.7 kN) and 750 lbF (3.4 kN), respectively. With generous travel and clearance, they are suitable for break testing, cycling, limit testing to a load or distance, loadholding, elongation testing, tensile testing, compression testing, and more.
Satisfy various test methods through an intuitive menu with selectable test parameters, such as speed, number of cycles, etc. Up to 50 profiles may be saved and password protected. Crosshead positioning for sample setup is a breeze with available FollowMe®. Using your hand as your guide, push and pull on the load to move the crosshead at a dynamically variable speed.
The stands feature a unique modular controller function platform. Functions such as travel measurement, cycling, etc. are offered individually, accommodating a wide range of budgets and applications.
Collect force and travel data, plot and analyze results, and control test stand motion via MESUR®gauge Plus software. Or, fully control the stand by a PC through a custom application.
Features
-
Broad force range and clearance dimensions
-

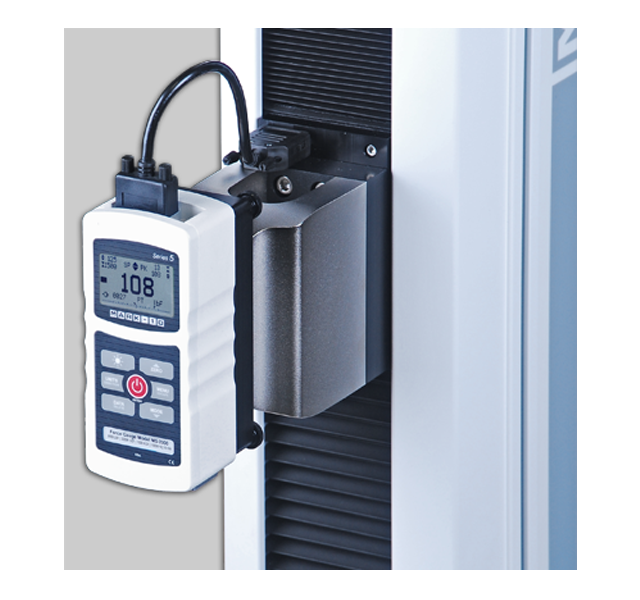

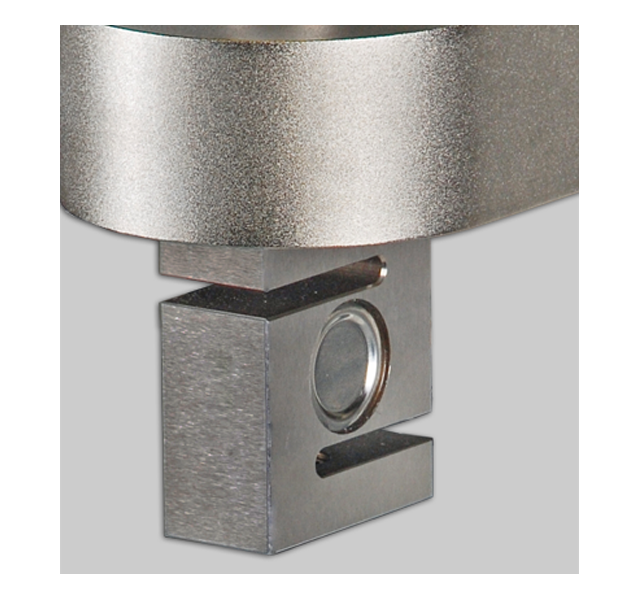

Compatible with load cells and force gauges
-
USB output of force vs. time or force vs. distance
-
Adjustable, removal control panel with intuitive menu navigation
-
Unique modular function platform - select functions as required for the application
-
Password protection of test parameters
-
Stepper motor-driven, producing smooth and quiet operation with no speed variation under load
-
Compact footprint, suitable for crowded workbenches
-
Most electronics are housed in an integrated removeable enclosure, easily accessed for service
Specification
|
|
|
|
ESM1500
|
ESM1500S
|
ESM750
|
ESM750S
|
|
Load capacity:
|
1,500 lbF [6.7 kN] at < 60 in [1,525 mm]/min
1,000 lbF [4.5 kN] at > 60 in [1,525 mm]/min
|
750 lbF [3.4 kN] at < 35 in [900 mm]/min
500 lbF [2.3 kN] at > 35 in [900 mm]/min
|
|
Maximum travel distance:
|
32.0 in [813 mm]
|
14.2 in [360 mm]
|
32.0 in [813 mm]
|
14.2 in [360 mm]
|
|
Standard speed range:
|
0.5 - 24 in/min [10 - 600 mm/min]
|
|
Available speed range:
|
0.001 - 90 in/min [0.02 - 2,300 mm/min]
|
0.001 - 60 in/min [0.02 - 1,525 mm/min]
|
|
Speed setting accuracy:
|
±0.2% of setting
|
|
Speed variation with load:
|
±0% [stepper motor driven]
|
|
Travel accuracy*:
|
±0.002 in. per 10 in. [±0.05 mm per 250 mm]
|
|
Travel resolution:
|
0.001 in [0.02 mm]
|
|
Limit switch repeatability:
|
±0.001 in [0.03 mm]
|
|
Power:
|
Universal input 80-240 VAC,
50/60 Hz, 450W
|
Universal input 80-240 VAC,
50/60 Hz, 120 W
|
|
Weight:
|
198 lb [90 kg]
|
160 lb [72 kg]
|
185 lb [84 kg]
|
150 lb [68 kg]
|
|
Shipping weight:
|
248 lb [113 kg]
|
206 lb [93 kg]
|
236 lb [107 kg]
|
196 lb [88 kg]
|
|
Warranty:
|
3 years [see individual statement for further details]
|
|
Conformance:
|
CE mark
|
* Because load cell deflection and system deflection are present and not automatically compensated for, this equipment is recommended for applications requiring at least 0.2 in [5 mm] of travel distance.
