Now including continuous USB output for load vs. time data collection!

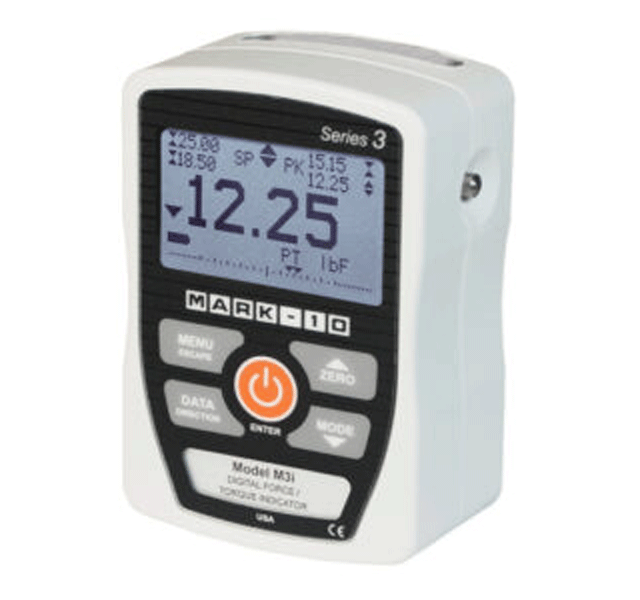

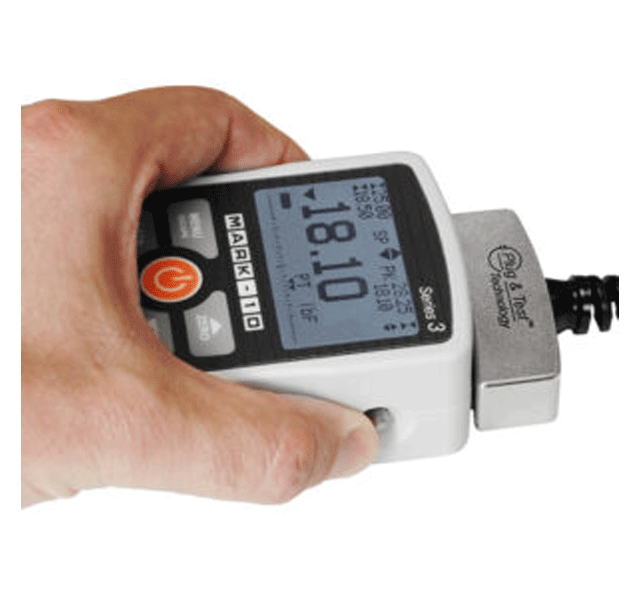

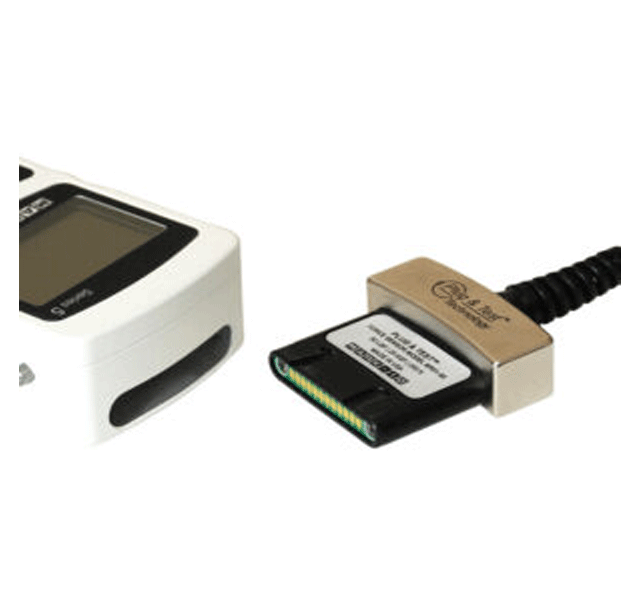

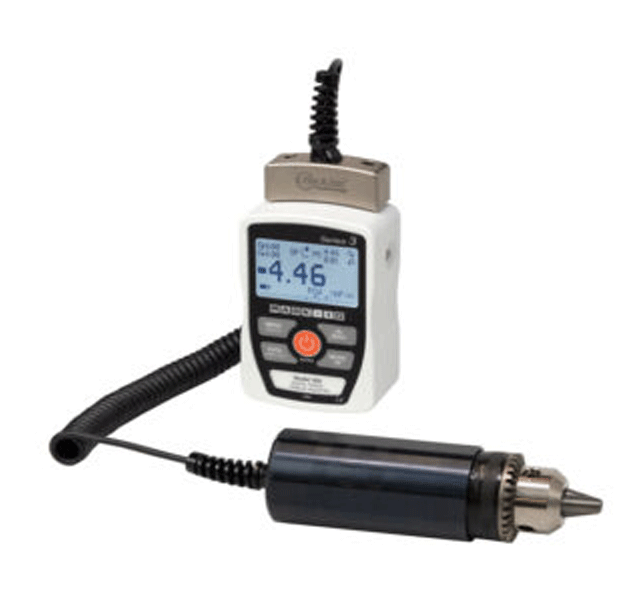

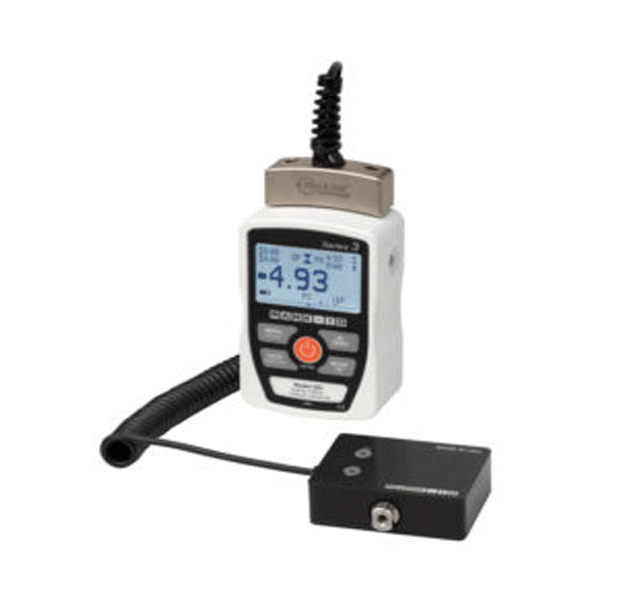

The 3i digital force / torque indicator is designed to work with a wide range of Mark-10 remote force and torque sensors. With exclusive Plug & Test™ technology, all calibration and configuration data is saved within the sensor’s smart connector, not the indicator, allowing for true interchangeability. In addition, all sensors are fully compatible with other Mark-10 indicators.
The 3i shares its menu structure and most specifications with Series 3 digital force gauges. The sampling rate is 2,000 Hz, producing accurate results under a wide range of test conditions. A backlit graphic LCD displays large characters, and a menu is available to access the gauges’ features and configurable parameters. The display also features an analog load bar for graphical representation of applied load, as well as set point indicators for pass-fail testing. USB output is provided for data collection purposes.

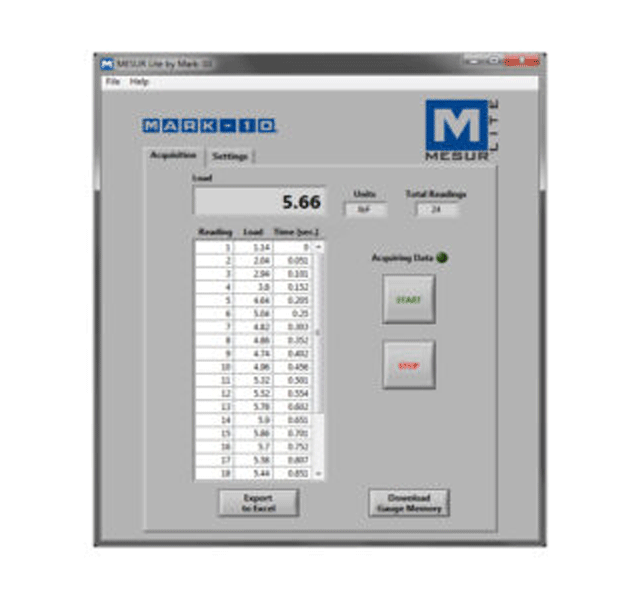

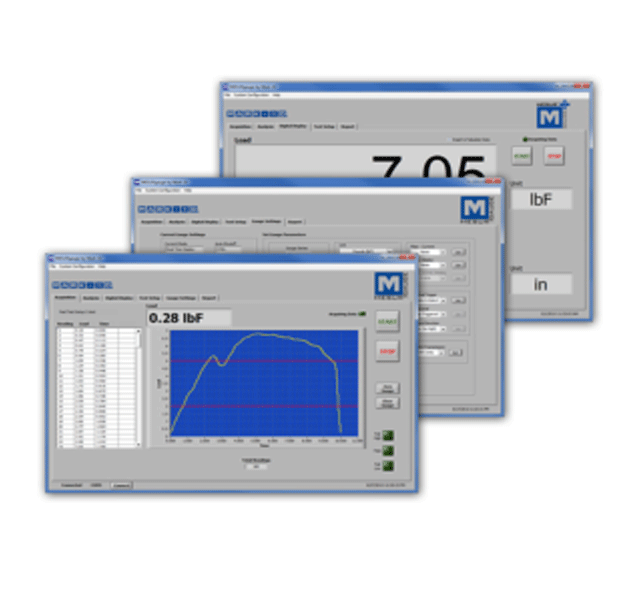

The 3i includes MESUR™Lite data acquisition software, for tabulation of continuous or individual data points. One-click export to Excel allows for further data manipulation.
Features :
-
Interchangeable force and torque sensors through Plug & Test™ technology (sensors are sold separately)
-
High-speed 2,000 Hz sampling rate
-
Ultra-compact size
-
Large backlit graphic display
-
Programmable set points with pass/fail indicators
-
Live load bar graph with set point markers
-
Peak readings and set points always displayed
-
Configurable audio alarms and key tones
-
Programmable auto-shutoff
-
Configurable audio alarms and key tones
-
Battery or AC operation
-
MESUR™ Lite data collection software included
-
CE mark
Specification :
|
Accuracy:
|
±0.2% of full scale + sensor
|
|
Sampling rate:
|
2,000 Hz
|
|
Power:
|
AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
|
|
Battery life:
|
Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
|
|
USB Output:
|
Configurable to 115,200 baud
|
|
Configurable settings:
|
Digital filters, outputs, automatic output (via USB/RS-232), automatic shutoff, default settings, averaging mode, external trigger, passwords, key tones, audio alarms, backlight, calibration
|
|
Safe overload:
|
150% of full scale (display shows “OVER” at 110% and above)
|
|
Weight:
|
0.7 lb (0.3 kg)
|
|
Shipping weight:
|
3 lb (1.4 kg)
|
|
Environmental requirements:
|
40 – 100°F, max. 96% humidity, non-condensing
|
|
Warranty:
|
3 years (see individual statement for further details)
|
|
HS code:
|
Model no.
|
HS code:
|
|
M3I (all models)
|
9024100000
|
|
15-1004
AC1111
AC1118
AC1030
AC1031
AC1032
AC1035
AC1008
|
9024800000
|
|
ECCN:
|
EAR99
|
|
Country of origin:
|
USA
|
