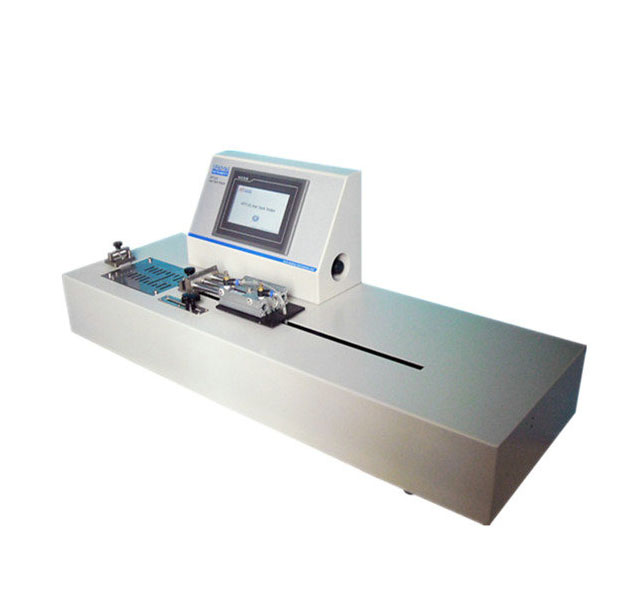

HTT- 01 Hot tack tester
HTT- 01 Hot tack tester is applicable in hot tack property test for plastic film, laminated film and other packaging film. Meanwhile, it is applicable in peel, shear, tension and other test items for adhesive, adhesive tape, laminated film, plastic film, paper and other flexible materials.
CHARACTERISTICS
-
Hot tack, heat seal test items are integrated in one instrument
-
Sealing jaws are controlled by P.I.D. temperature. Temperature rises fast to set temp and keeps stable
-
7 inch TFT touching screen for easy operation
-
PLC control Aluminum encapsulated sealing jaws for average heating
-
Multi-group parameter saving
-
Any testing speed adjustable
-
Auto zeroing, overload and over travel protection
-
Manual and foot switch starting test, anti-scald design RS 232 port and professional software
TECHNICAL INDEXES
-
Seal Temperature: room temperature~250ºC
-
Temp. Control Accuracy: ±0.2ºC
-
Dwell Pressure: 0.15MPa~0.7MPa
-
Dwell Time: 0.1s~9999s
-
Delay Time: 0.1s~9999s
-
Load Cell Range: 0-200N (optional: 30N 50N 100N)
-
Accuracy: ±1% of reading force
-
Resolution: 0.01 N
-
Test Speed: any speed can be set
-
Heat Type: double heating (also made to order)
-
Specimen Width: 15mm , 25.4 mm. Or 25 mm(Optional, also made to order)
-
Stroke: 500 mm
-
Gas Source Pressure: 0.5MPa ~ 0.7MPa (Users provide gas sources themselves)
-
Power: AC 220V 50Hz
