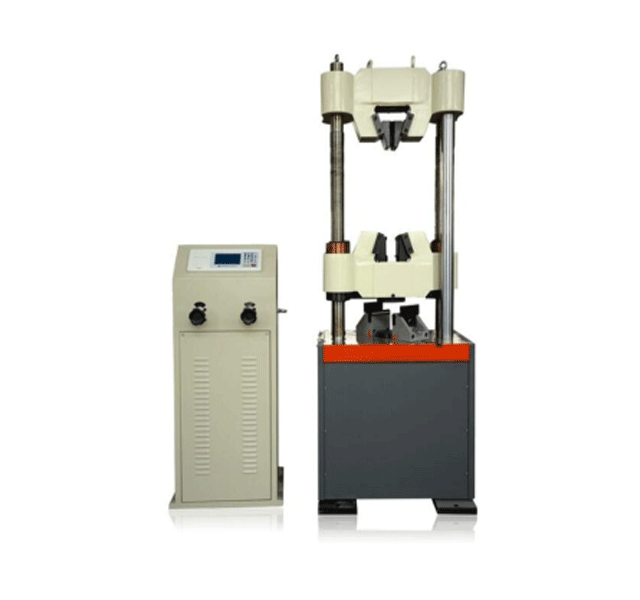

LD_600B LCD digital hydraulic universal testing machine
LD_600B LCD digital hydraulic universal testing machine can be used for a variety of metal materials to test their tensile, compression, bending and shear. It can also be used as plastic, concrete, cement and other non-metallic materials’ compression test. If it is added to some simple accessories, it can complete a variety of performance tests of the tape chain, wire rope, welding electrodes, tiles and components. The machine adopts the under cylinder, low height, light weight, which is especially suit for the construction sectors. Electronic force measurement, LCD display test force - time curve, test force, test force peak, the yield strength with obvious yield characteristics material, experimental data convenient and intuitive; Through the digital key to input sample number, cross-sectional area, it can directly measure the tensile strength, yield strength and other mechanical properties of the materials; it can print the results of the experiment.
Technical Parameter
-
Maximum test force 600 kN
-
Testing machine accuracy 1degree
-
Accuracy of test force indication =±1%
-
Range of test force Maximum test force 4%~100%
-
Maximum tensile test space 590mm
-
Maximum compression test space 500mm
-
Holding range of round sample F6~40mm
-
Holding range of flat specimen 0~30mm
-
Holding width 80mm
-
Top and bottom pressure plate size F140mm
-
Maximum distance between supporting rolls of bent support 400mm
-
Column spacing 450mm
-
piston stroke 200mm
-
Maximum piston speed 80mm/min
-
Maximum moving speed of beam 150mm/min
-
Oil pump motor power 2KW
-
Power of crossbeam moving motor 0.75kw
-
Machine size 730×590×2200mm
-
Machine weight 1800Kg
