The ES30 Force Measurement Test Stand is a versatile and economical solution for most compression and tensile testing applications. It can accept a wide variety of sample shapes and sizes and can be configured in many positions due to modular design. Precision hand wheel operation enables the user to easily and accurately test up to 200 lbF [1 kN] of force. Use the ES30 with any Mark-10 force gauge and grips to create a complete testing solution.
Features :
-
Compatible with all Mark-10 force gauges, accessories and grips.
-
Modular design: the entire base may be removed for alternative mounting.
-

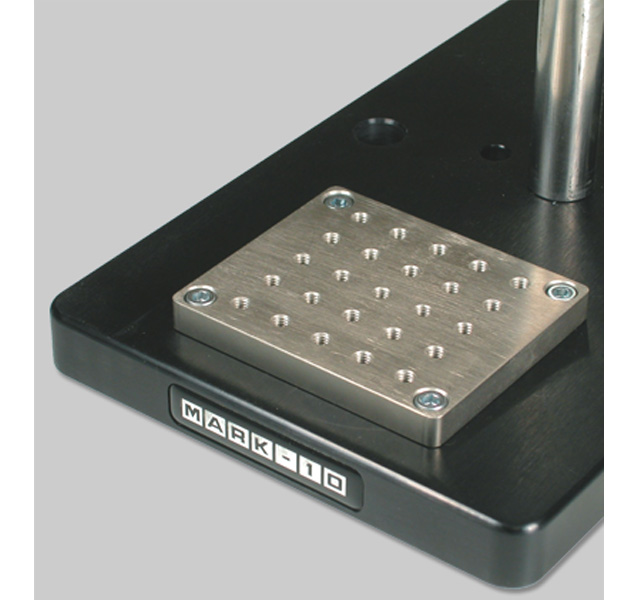

Removable base plate with 25 #10-32 threaded holes for fixture mounting.
-
Competitor force gauge mounting kits available.
Specification :
-
Maximum force:200 lbF [1 kN]
-
Maximum travel:13" [330 mm]
-
Travel rate:0.05" [1.27 mm]/hand wheel revolution
-
Weight:17 lb [7.7 kg]
-
Shipping weight:23 lb [10.4 kg]
-
HS code:ES30: 9024900000
ESM001, ESM004, ESM003-1,-2,-3: 9024800000
-
ECCN: EAR99
-
Country of origin: USA
PC Connection

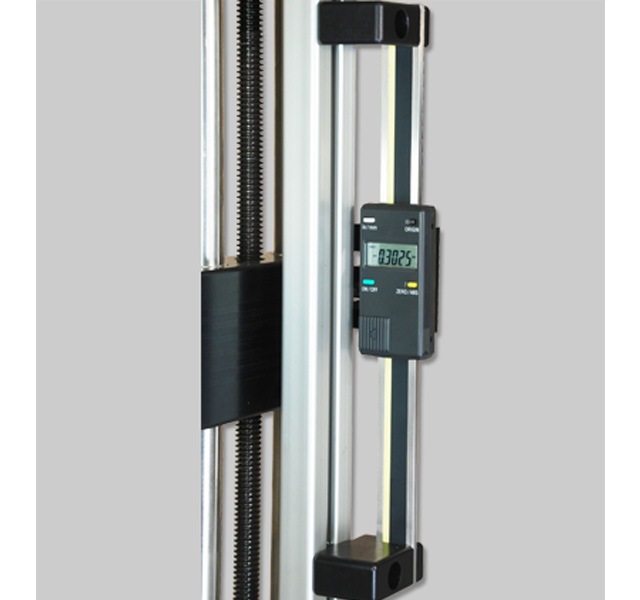

Mark-10 force gauges with data output include a USB cable, which can be connected directly to a PC. If the ESM001 digital travel display option is ordered and connection to a PC is desired, the following connection cables are required:
Travel display (Mitutoyo) <=> 09-1066 cable, Mitutoyo <=> MRS100A converter, Mitutoyo to RS-232 <=> RSU100 converter, RS-232 to USB (optional)
In the Box
 |

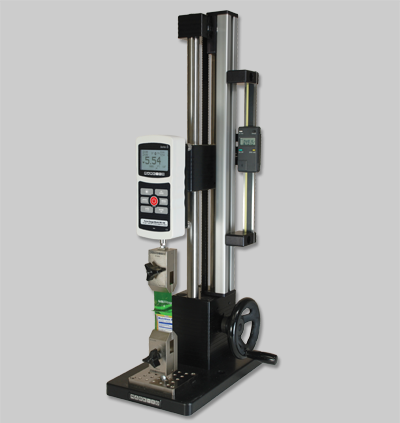

The ES30 test stand is shipped as shown at left, and includes the following accessories:
(1) G1024 extension rod, 2”
(1) G1028 small hook
(1) G1038 medium hook
(1) G1009 compression plate, 2” dia.
(1) G1039 coupling, #10-32F/F
(1) G1030 thread adapter, 5/16-18M to #10-32F
(1) Allen wrench set
(1) Hand wheel
(4) Thumb screw for force gauge
(1) Resource CD
|
