Description

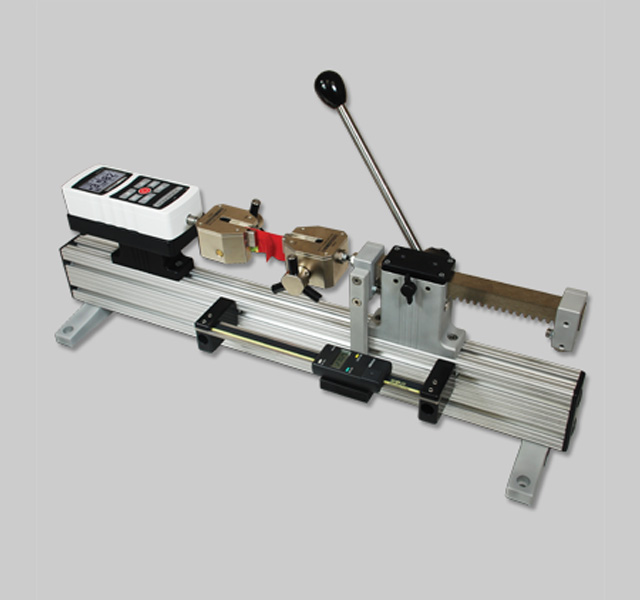

The lever operated Force Measurement Test Stand Model TSA750 is a perfect solution for quick-action pull testing and compression testing of up to 750 lbF (3.75 kN) of tensile or compressive force. Made of rugged, machined aluminum components, this test stand is durable enough for the factory floor, yet precise enough for laboratory environments. The test stand includes adjustable travel stops and a frictional low force brake. Available in vertical and horizontal orientations.

Features :

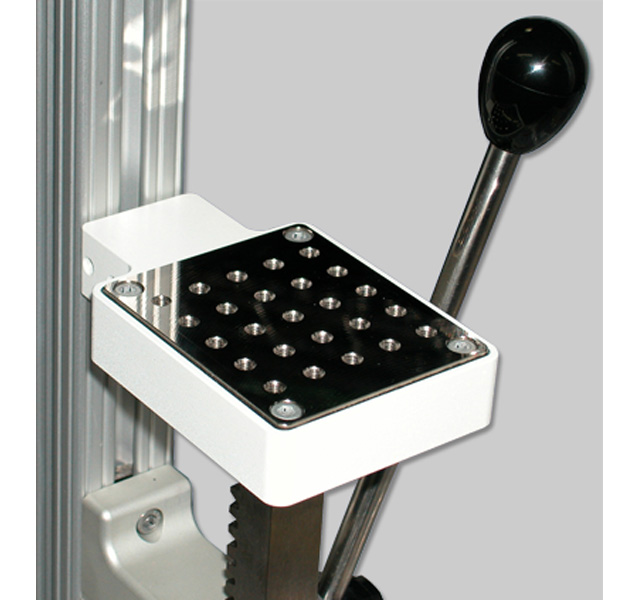

Compatible with all Mark-10 force gauges, accessories and grips
Loading lever can be positioned in 30° increments for ease of operation
Threaded holes for bench mounting

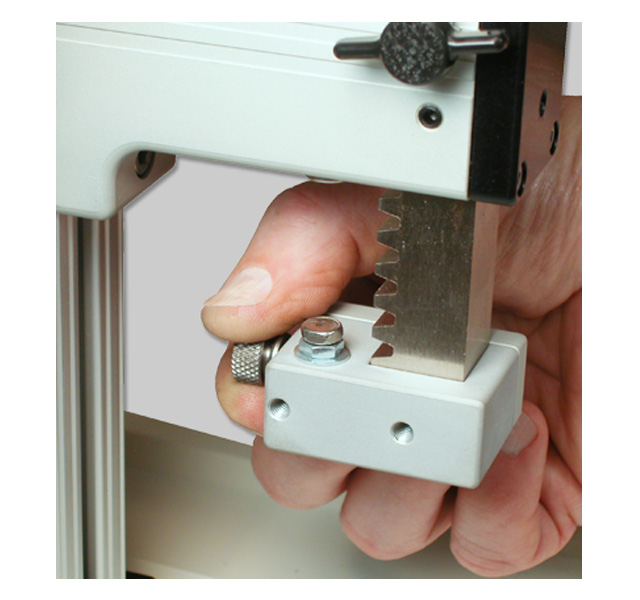

Adjustable travel stops
Precision ground rack and pinion mechanism
Adjustable wear plates for smooth, precise motion
Optional digital travel display
Adjustable friction brake modulates the effort required to turn the lever
Competitor force gauge mounting kits available

Specification :

Maximum force:750 lbF [3.75 kN]
Maximum travel, with stops:3.75" [95 mm]
Maximum travel, without stops:6" [150 mm]
Travel rate:3" [76.2 mm]/lever revolution
Weight : TSA750: 16 lb [7.3 kg]

TSA750H: 13 lb [5.9 kg]

Shipping Weight : TSA750: 24 lb [10.9 kg]

TSA750H: 19 lb [8.6 kg]

HS code: TSA750, TSA750H: 9024900000

TSA001, TSA002, TSA003, SP-2734-12,-24,-42: 9024800000

ECCN : EAR99
Country of origin: USA

PC Connection :
Mark-10 force gauges with data output include a USB cable, which can be connected directly to a PC. If the ESM001 digital travel display option is ordered and connection to a PC is desired, the following connection cables are required:
Travel display (Mitutoyo) <=> 09-1066 cable, Mitutoyo <=> MRS100A converter, Mitutoyo to RS-232 <=> RSU100 converter, RS-232 to USB (optional)
Ordering information for these accessories can be found here.

In The Box :

The TSA750 and TSA750H test stands are shipped as shown at left, and include the following accessories:

(1) G1009 compression plate, 2” dia.

(1) G1028 small hook

(1) G1030 thread adapter, 5/16-18M to #10-32F

(1) G1035 large hook

(1) G1038 medium hook

(1) G1041 thread adapter, 5/16-18M to #1/2-20M

(1) G1042 extra large hook

(1) G1091 thread coupler, 1/2-20F, 1/2-20F

(1) 5/16-18 stud with jam nuts

(1) #10-32 stud with jam nuts
