The lever operated Force Measurement Test Stand Model TSB100 is an economical solution for quick-action tensile testing and compression testing of up to 100 lbF (500 N) of force. Constructed of rugged components, this test stand is durable enough for the factory floor, yet precise enough for laboratory environments.
Features :
-
Compatible with all Mark-10 force gauges, accessories and grips
-
Loading lever can be positioned in 30° increments for ease of operation
-
Mounting holes for bench mounting
-

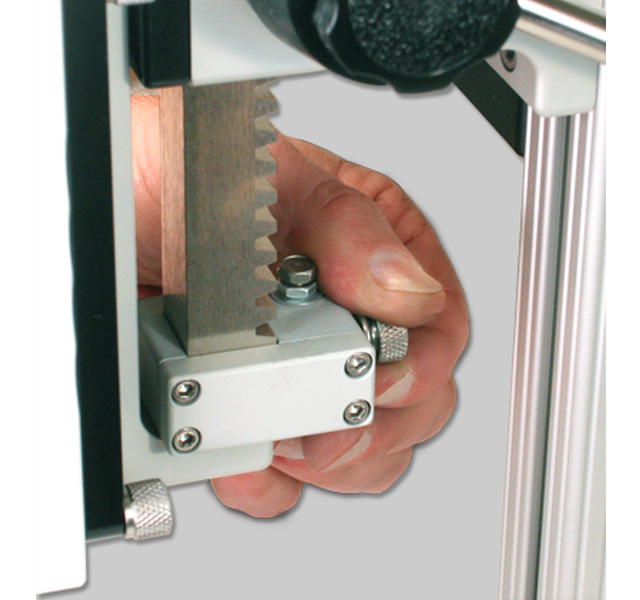

Optional adjustable travel stops
-
Precision ground rack for smooth precision motion
-

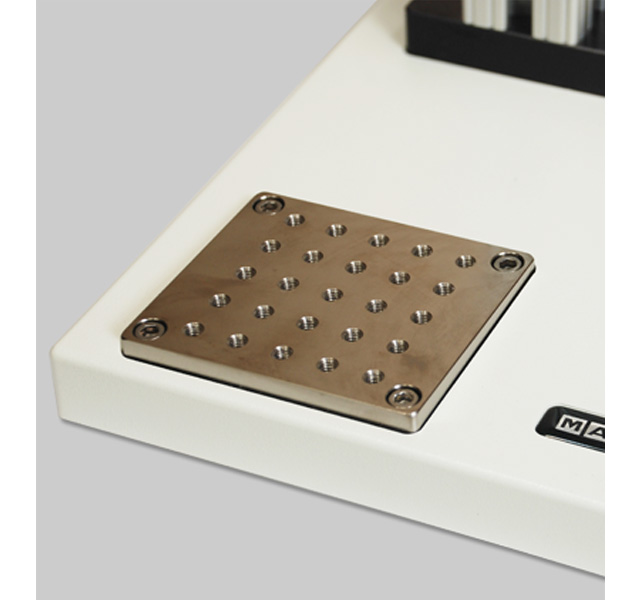

Removable base plate with 25 #10-32 UNF holes for fixture mounting
-
Low force friction brake
Specification :
-
Maximum force:100 lbF [500 N]
-
Maximum travel, with stops (optional):3.75" [95 mm]
-
Maximum travel, without stops:6" [150 mm]
-
Travel rate:3" [76.2 mm]/lever revolution
-
Weight:12 lb [5.4 kg]
-
Shipping weight:25 lb [11.3 kg]
-
HS code:TSB100: 9024900000
TSB001, TSA002, TSB003, SP-2734-12,-24,-42: 9024800000
-
ECCN : EAR99
-
Country of origin: USA
PC Connection :

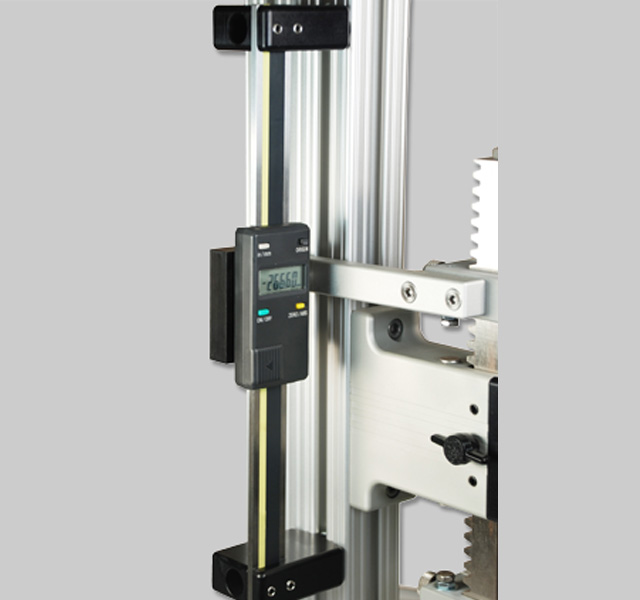

Mark-10 force gauges with data output include a USB cable, which can be connected directly to a PC. If the ESM001 digital travel display option is ordered and connection to a PC is desired, the following connection cables are required:
Travel display (Mitutoyo) <=> 09-1066 cable, Mitutoyo <=> MRS100A converter, Mitutoyo to RS-232 <=> RSU100 converter, RS-232 to USB (optional)
In The Box
 |

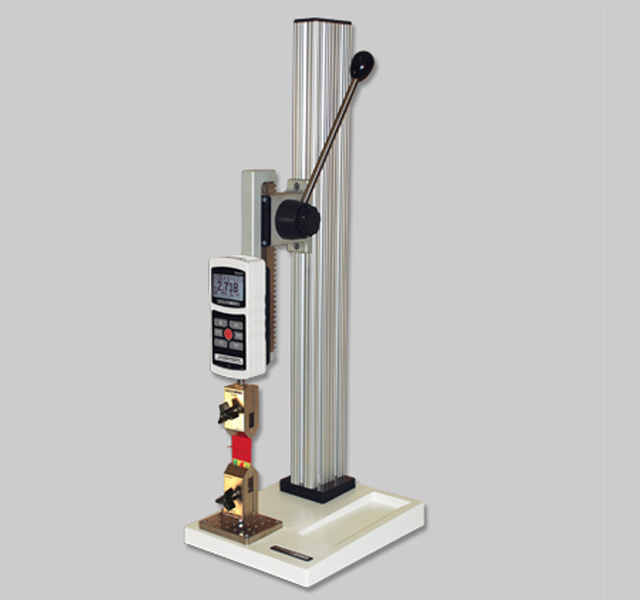

The TSB100 test stand is shipped as shown at left, and includes the
following accessories:
(1) G1030 thread adapter, 5/16-18M to #10-32F
(1) Allen wrench set
(4) Thumb screw for force gauge |
