Description

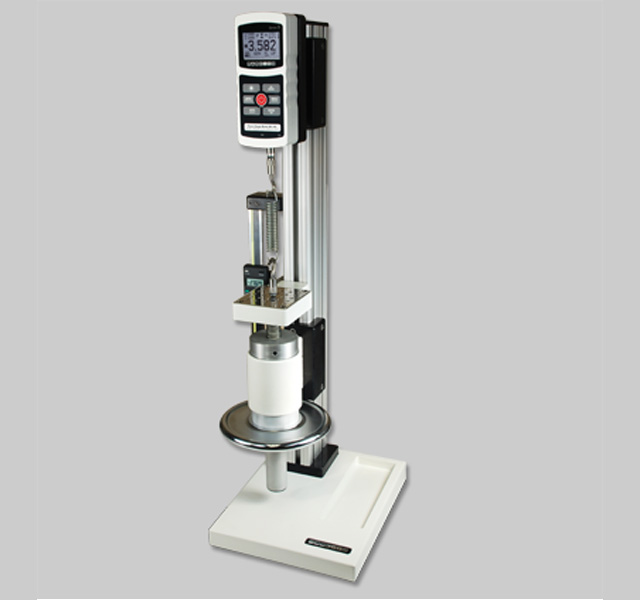

The TSC1000 Force Measurement Test Stand is ruggedly built for testing up to 1,000 lbF (5 kN) of compression or tension force.

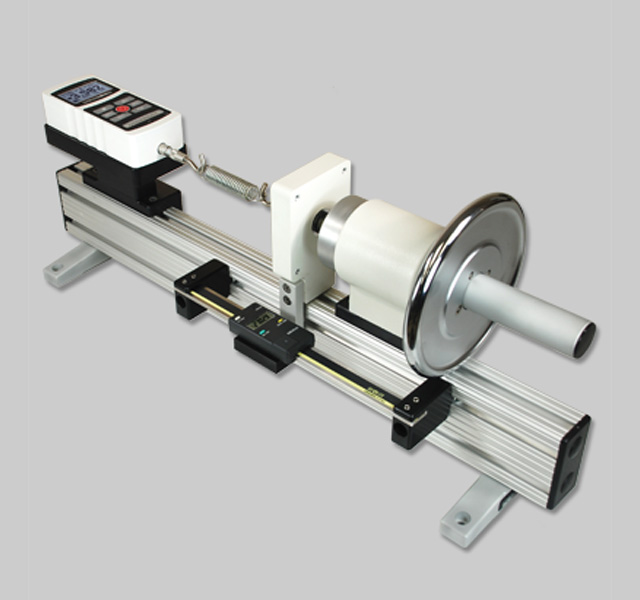

A large hand wheel requires little effort, even at high loads, and a precision Acme screw and nut ensure smooth operation over time. The stand includes a loading table with threaded holes for fixture or grip mounting and a solid metal base contains a storage pocket and holes for bench mounting. Available in vertical and horizontal orientations.

Features:

Compatible with all Mark-10 force gauges, accessories and grips
Mounting holes for bench mounting

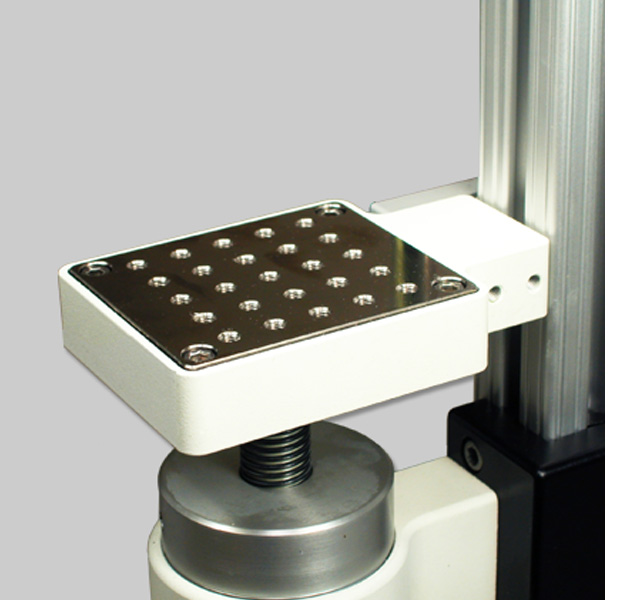

Loading table with 25 #10-32 UNF holes for fixture mounting
Precision Acme screw and nut

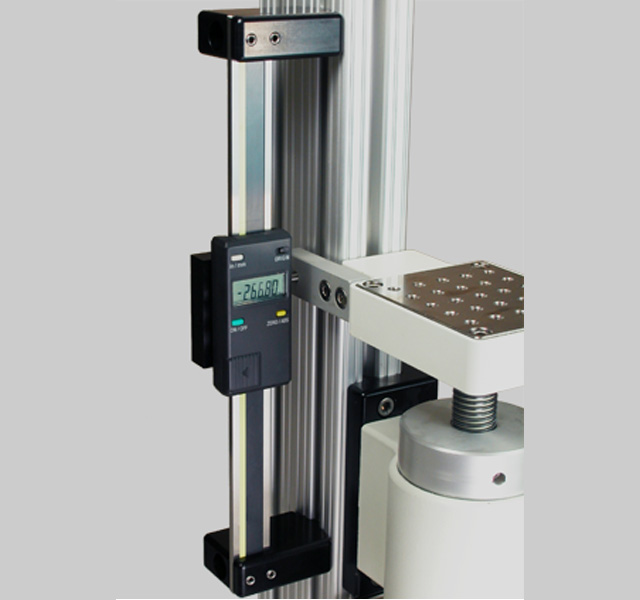

Optional digital travel display

Specification :

Maximum force:1,000 lbF [5 kN]
Maximum travel:3.5" [89 mm]
Travel Rate:0.1 in [2.5 mm] per hand wheel revolution
Weight:TSC1000: 25 lb [11.3 kg]

TSC1000H: 20 lb [9.1 kg]

Shipping weight:TSC1000: 30 lb [13.6 kg]

TSC1000H: 28 lb [12.7 kg]

HS code:TSC1000, TSC1000H: 9024900000

TSC001, TSA002, SP-2734-12,-24,-42: 9024800000

ECCN: EAR99
Country of origin: USA

PC Connection
Mark-10 force gauges with data output include a USB cable, which can be connected directly to a PC. If the ESM001 digital travel display option is ordered and connection to a PC is desired, the following connection cables are required:
Travel display (Mitutoyo) <=> 09-1066 cable, Mitutoyo <=> MRS100A converter, Mitutoyo to RS-232 <=> RSU100 converter, RS-232 to USB (optional)

In the Box

The TSC1000 and TSC1000H test stands are shipped as shown at left, and include the following accessories:

(1) G1009 compression plate, 2” dia.

(1) G1009-1 compression plate, 3” dia.

(1) G1028 small hook

(1) G1030 thread adapter, 5/16-18M to #10-32F

(1) G1035 large hook

(1) G1037 coupling, 5/16-18 F/F

(1) G1038 medium hook

(1) G1039 coupling, #10-32 F/F

(1) G1041 thread adapter, 5/16-18M to #1/2-20M

(1) G1042 extra large hook
