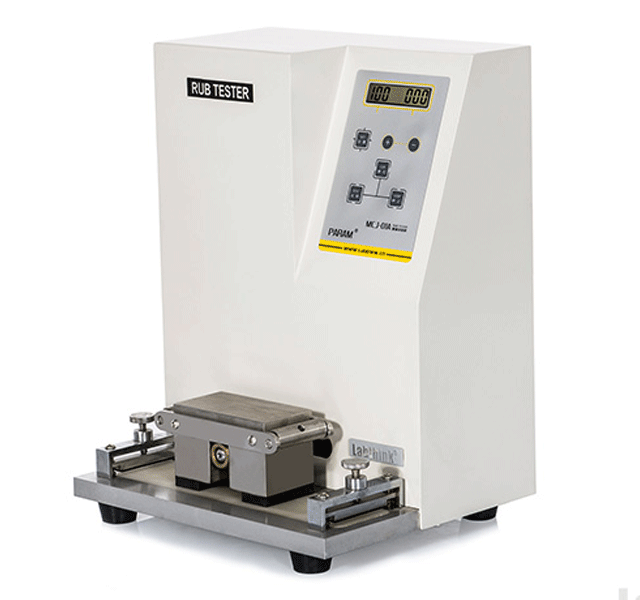

MCJ-01A Rub Tester is professionally designed for abrasion resistanceof surface coating layers of printed materials, e.g. ink layer or photosensitive (PS) coating. This instrument could effectively analyze the problems of poor abrasion resistance, ink layer falling off, lower printable force and poor hardness of coating layers of printed materials.
Technical Specification
|
Specifications
|
MCJ-01A
|
|
Rub Pressure
|
20 ±0.2 N
|
|
Rub Speed
|
43 cpm
|
|
Rub Area
|
155 mm (L) x 50 mm (W)
|
|
Rub Times
|
0 ~ 999
|
|
Specimen Size
|
230 mm (L) x 50 mm (W)
|
|
Power Supply
|
220VAC 50Hz / 120VAC 60Hz
|
|
Instrument Dimension
|
260 mm (L) x 230 mm (W) x 360 mm (H)
|
|
Net Weight
|
22 kg
|
Features
-
This instrument is strictly designed according to standard requirements to ensure the accuracy of test data
-
The instrument is controlled by micro-computer, with PVC operation panel, LCD and membrane switch, which is convenient for users to operate or view the test data
-
Standard embedded rub panel ensures the even rub area and rub process is completely quiet
-
Special design of power failure memory provides safe data operating environment
Application
MCJ-01A Rub Tester is applicable to the determination of abrasion resistance of:
|
Basic Applications
|
· Paper Printing Materials
Test the abrasion resistance of ink layers of printed materials and effectively analyze the problems of poor abrasion resistance and ink layer falling off
|
|
· Photosensitive Coating Layers
Test the abrasion resistance of photosensitive coating layers and effectively analyze the problems of lower printing force of PS boards
|
