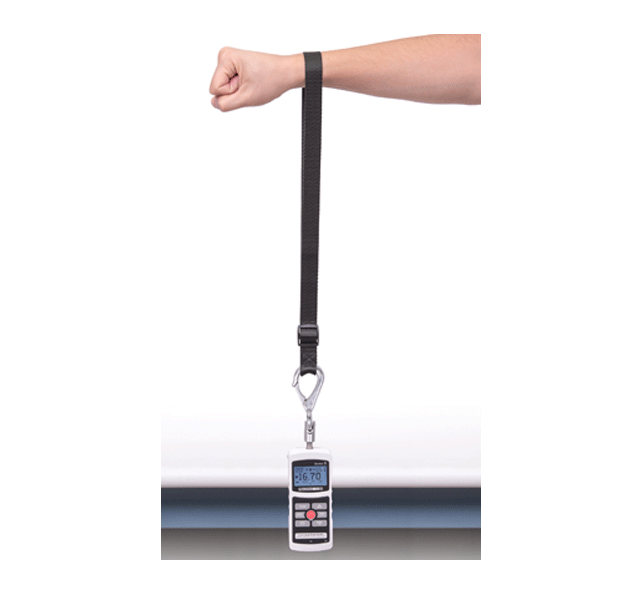

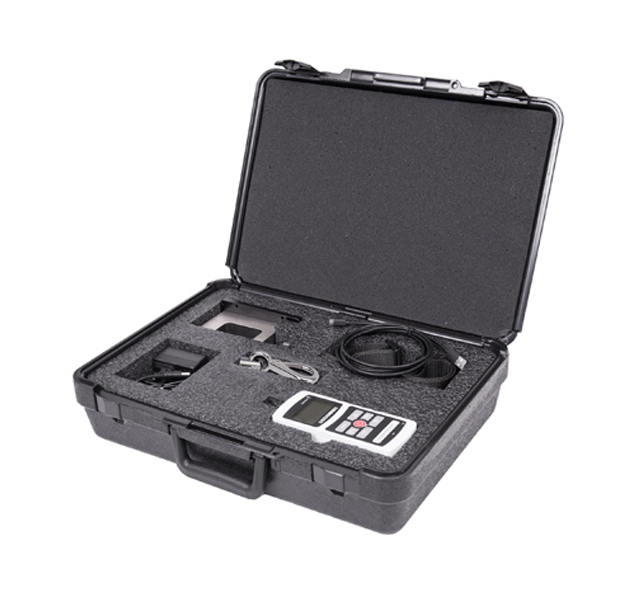

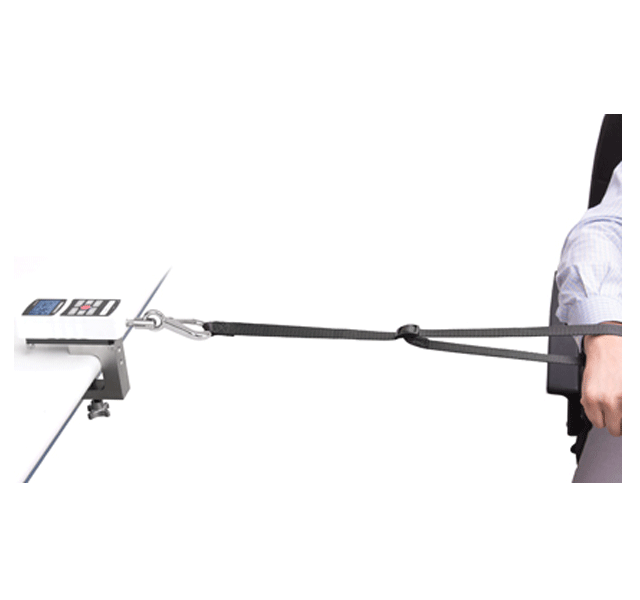

The Model EKM5-200 Myometer Kit facilitates a wide range of strength assessments and ergonomics studies. Featuring a Series 5 force gauge with 200 lbF (1,000 N) range, tabletop mount, strap, and accessories, this kit is ideal for ergonomists and other professionals.
Force Gauge Features
-
Measures real time, average, and peak pull and push forces
-
200 lbF (1,000 N) force capacity
-
Accuracy of ±0.1% of full scale
-
Sampling rate of 7,000 Hz
-
USB, RS-232, and analog outputs
-
High / low limit indicators, for pass / fail and minimum force testing
-
1,000-point data memory with statistical calculations. Data may be bulk downloaded to included MESUR® Lite data collection software.
-
Force gauge is compatible with other Mark-10 grips and attachments
Force Gauge Specifications
|
Accuracy:
|
|
±0.1% of full scale
|
|
Sampling rate:
|
|
7,000 Hz
|
|
Power:
|
|
AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
|
|
Battery life:
|
|
Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
|
|
Capacity x Resolution:
|
|
200 x 0.05 lbF, 3200 x 1 ozF, 100 x 0.02 kgF, 1000 x 0.2 N, 1 x 0.0002 kN
|
|
Outputs:
|
|
USB / RS-232: Configurable up to 115,200 baud. Automatic output available up to 250 Hz. Includes Gauge Control Language 2 for full computer control.
Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices.
Analog: ±1 VDC, ±0.25% of full scale at capacity
General purpose: Three open drain outputs, one input.
Set points: Three open drain lines.
|
|
Safe overload:
|
|
200% of full scale (display shows “OVER” at 110% and above)
|
|
Warranty:
|
|
3 years (see individual statement for further details)
|
