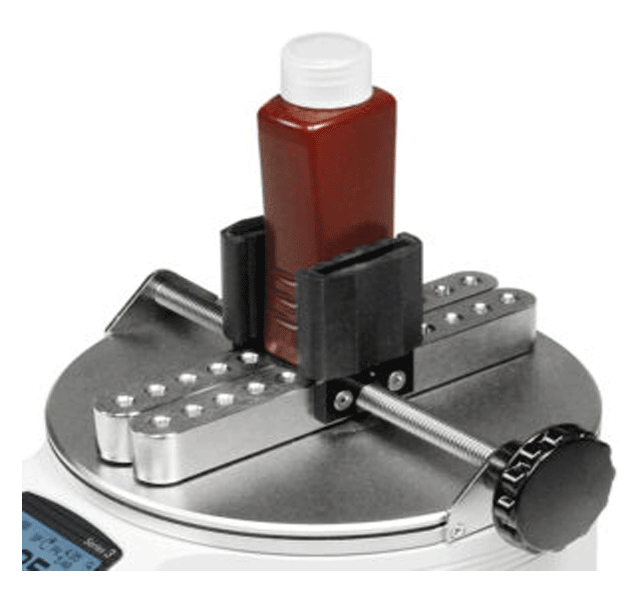

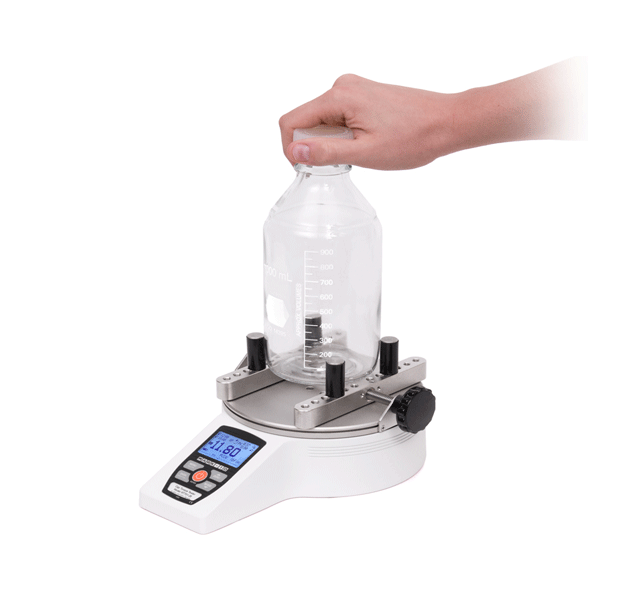

Series TT01 Cap Torque Testers are designed to measure application and removal torque of bottle caps up to 100 lbFin [11.5 Nm]. Adjustable posts effectively grip a broad range of container shapes and sizes, while optional flat and adjustable jaws are available for unique profiles. A rugged aluminum design, and simple, intuitive operation allow for use in laboratory and production environments.
Class-leading accuracy of ±0.3% and blazingly fast sampling rate of 7,000 Hz ensure reliable and consistent test results, even in quick-action applications. Password protection is provided to prevent unauthorized changes to settings and calibration.
The TT01 includes a range of sophisticated productivity-enhancing features, including USB, RS-232, Mitutoyo, and analog outputs, automatic data output and zeroing upon cap removal, memory storage for 1,000 readings, pass/fail indicators and outputs, and more. First / second peak torque detection is useful for measuring slip and breakaway torques for tamper evident closures.
Series TT01 testers include MESUR® Lite data acquisition software. MESUR® Lite tabulates continuous or single point data. Data stored in the TT01’s memory can also be downloaded in bulk. One-click export to Excel allows for further data manipulation.
Features
-

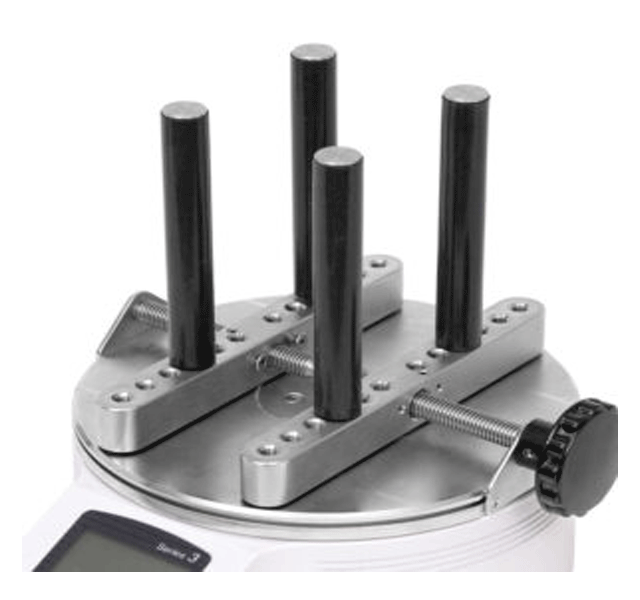

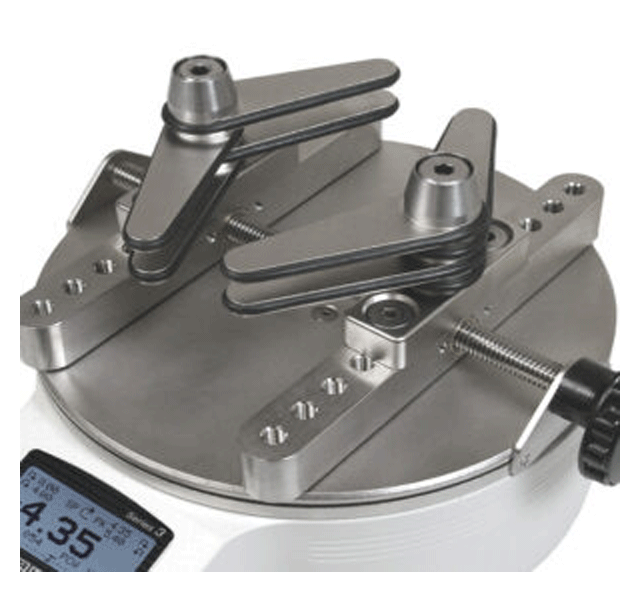

Moveable 1.25" (31 mm) length posts accommodate a wide range of sample shapes and sizes
-
Available extended post lengths and other gripping options
-

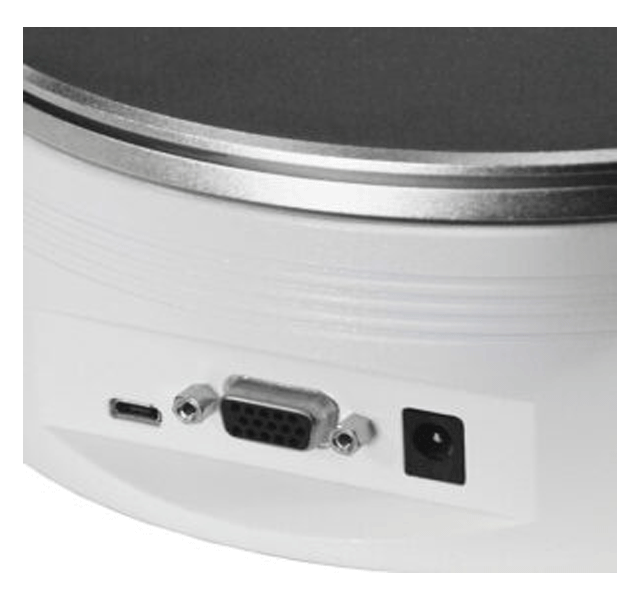

USB, RS-232, Mitutoyo, and analog outputs
-
Automatic output, data storage, and zeroing upon bottle cap removal helps automate testing processes
-
First / second peak detection for slip and breakaway torques in tamper evident closures
-
1,000-point data memory with statistics and outputs
-
Password protection prevents unauthorized changes
-
Programmable set point indicators and outputs for pass/ fail determination
-
High-speed 7,000 Hz sampling rate accurately captures peak torque values
-
Configurable audio alarms and key tones
-
5 selectable units of measurement
-
MESUR® Lite data collection software included
Specification
|
Accuracy:
|
±0.3% of full scale
|
|
Sampling rate:
|
7,000 Hz
|
|
Bottle diameter range:
|
Ø0.5 – 7.5 in [12.7 – 189.4 mm]
With CT001 optional jaws: Ø0 – 5.9 in [0 – 149.9 mm]
With CT003 optional jaws: Ø0 – 4.6 in [116.8 mm]
|
|
Power:
|
AC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low.
|
|
Battery life:
|
Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
|
|
Measurement units:
|
ozFin, lbFin, kgFcm, Nm, Ncm
|
|
Output:
|
USB / RS-232: Configurable up to 115,200 baud.
Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices.
Analog: ±1 VDC, ±0.25% of full scale at capacity,
General purpose: Three open drain outputs, one input.
Set points: Three open drain lines.
|
|
Configurable settings:
|
Digital filters, outputs, automatic output/data storage/zero, automatic shutoff, default settings, key tones, backlight, audio alarms, passwords, calibration
|
|
Safe overload:
|
150% of full scale (display shows “OVER” at 110% and above)
|
|
Weight:
|
8.4 lb [3.8 kg]
|
|
Shipping weight:
|
10.2 lb [4.6 kg]
|
|
Environmental requirements:
|
40°F – 100°F [5°C – 45°C], < 96% humidity (non-condensing)
|
|
Warranty:
|
3 years (see individual statement for further details)
|
