G1074

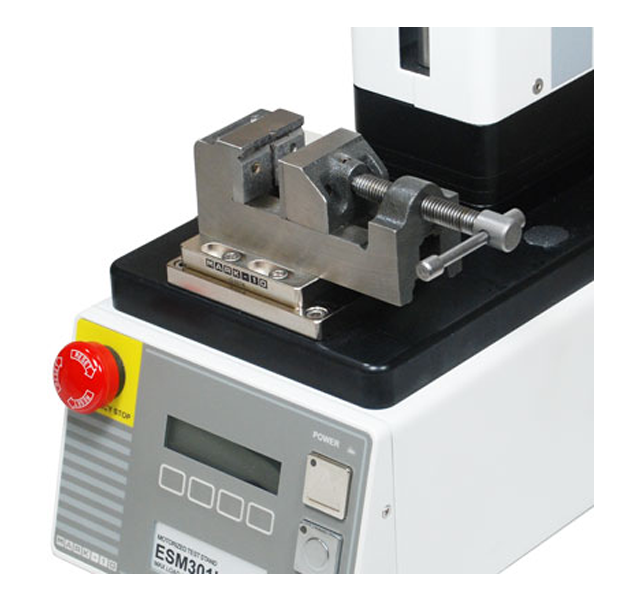

This general purpose vise can be used in a wide range of tension and compression testing applications. Wide opening range accommodates large and unique samples. Rugged design permits testing up to 500 lbF (2,500 N).
The G1106 self-centering vise grip offers smooth removable jaws can be field-modified to improve sample gripping characteristics as required for pull testing applications.
Features
Specifications
Maximum Tension Force:
500 lbF [2,500 N]
Weight:
2.0 lb [0.9 kg]
Dimensions
IN[MM]
|
A |
B |
C |
D |
E |
F |
G |
|
1.00 [25.4] |
0.50 [12.7] |
1.50 [38.1] |
2.00 [50.8] |
2.50 [63.5] |
0 – 1.50 [0 – 38.1] |
1.00 [25.4] |
