Description

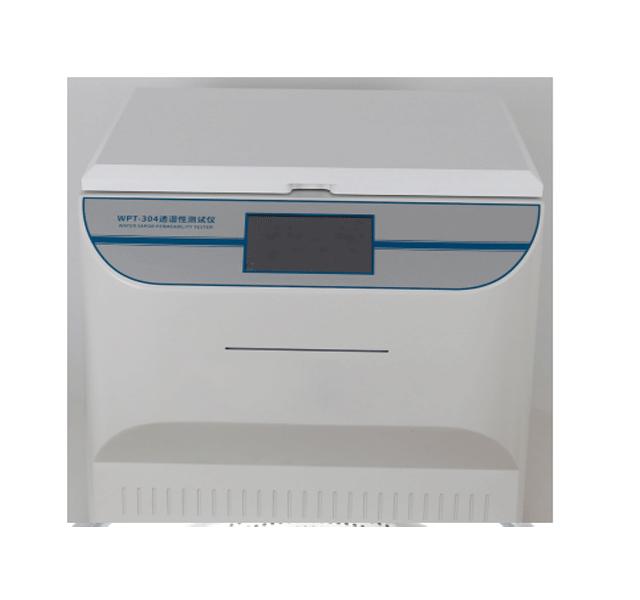

WPT_304 Water Vapor Permeability Tester

WPT_304 Water Vapor Permeability Tester based on the gravimetric method is applicable to test the water vapor transmission rate of plastic film, composite film, sheet, and other materials used in packaging, medical and construction industry.

Features

Standard periodic weighing method and auto-zeroing function guarantee the accuracy and uniformity of the testing data.
Touch interface is more convenient to operate.

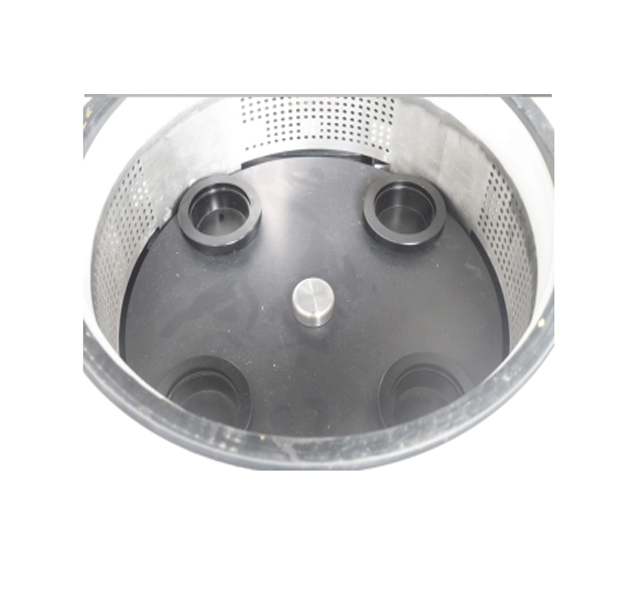

4 specimens can be processed independently with individual result in one test automatically.
Electrical cylinder lifting structure and automatic weighing calibration mode ensure the accuracy of data.
Innovative circulating dehumidification system can effectively prevent the formation of humidity gradient and ensure accuracy.
Automatic control system of temperature and humidity can be used under different conditions.
Adjustable air velocity enables the appropriate humidity for testing.
The data can be stored and outputted in multi-format (including reports in excel and cloud sharing).
GMP management of user's three-level authority complies with international standards.
The instrument processes statistical analysis of single and group data.
Equipped with ISP control online and upgrade function.
Specialized communicating software can display in real-time, analyze and store data.

Applications

Film_ Including plastic films, plastic composite films, paper-plastic composite films, geomembranes, coextruded films, aluminized films, aluminum foils, aluminum foil composite films, breathable water-proof films and many other film materials.
Sheet_ Including engineering plastics, rubber, waterproof building materials and thermal insulation materials, e.g, PP, PVC, PVDC and nylon.
Paper, Paperboard_ Including paper and paper board.
Textile and Non-woven_ Including textiles and nonwovens

Technical Specifications

Test Range 0.01 - 10,000 g/m²•24h (Standard)(Customization is available for desiccant method)
Number of Specimen 1-4 PCS with independent test results (Customization = 8 PCS)
Accuracy 0.01 g/m²•24h
Resolution 0.0001 g
Range of Temperature 10°C - 55 °C(Standard)
Accuracy of Temperature ±0.5 °C
Range of Humidity 10%RH - 90%RH (Comparative Humidity)
Accuracy of Humidity ±2%RH Velocity 0.5 - 2.5 m/s (Customization is available)
Test Area 33.18 cm²
Sample’s Thickness = 3 mm (Customization is available)
Sample’s Size F72 mm
Air Connection F6mm PU Tube
Dimension 500 mm (L) × 500 mm (W) × 550 mm (H)
Net Weight 42 kg
