Compression Plates

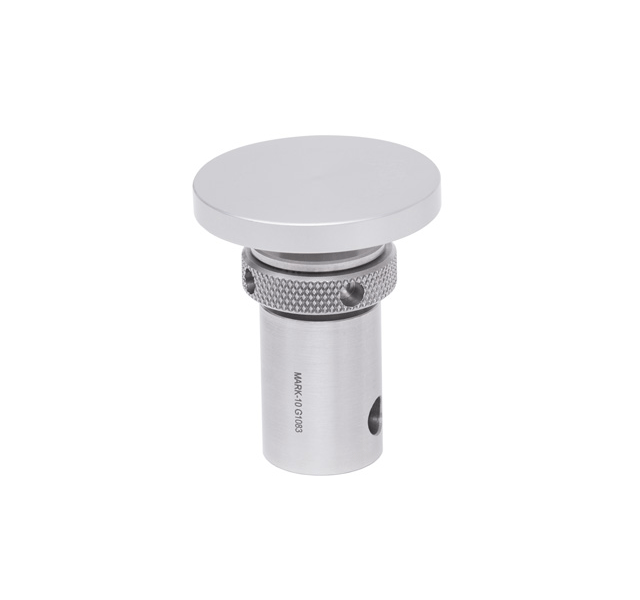

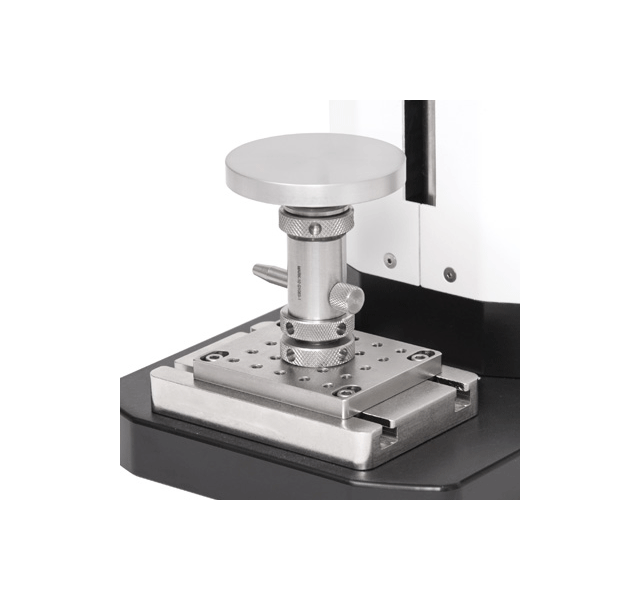

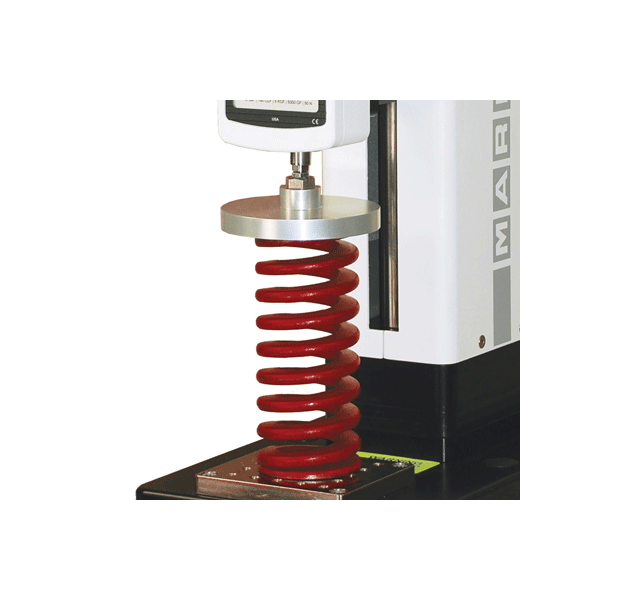

These aluminum compression plates are ideal for testing springs, foams, and other materials. The plates attach directly to Mark-10 force gauges and test stands.
Full Description
G1009, G1009-1, G1009-2, G1009-3
These aluminum compression plates are ideal for testing springs, foams, and other materials. The plates attach directly to Mark-10 force gauges and test stands.
Features
- Select from two sizes, with or without vented channels
- Mounting threads accommodate Mark-10 force gauges, sensors, and test stands
specification
| Model | Capacity lbF [N] | Weight lb [kg] | Shipping Weight lb [kg] |
|---|---|---|---|
| G1009, G1009-2 | 200 [1,000] | 0.08 [0.04] | 1 [0.5] |
| G1009-1, G1009-3 | 500 [2,500] | 0.27 [0.12] | 1 [0.5] |
