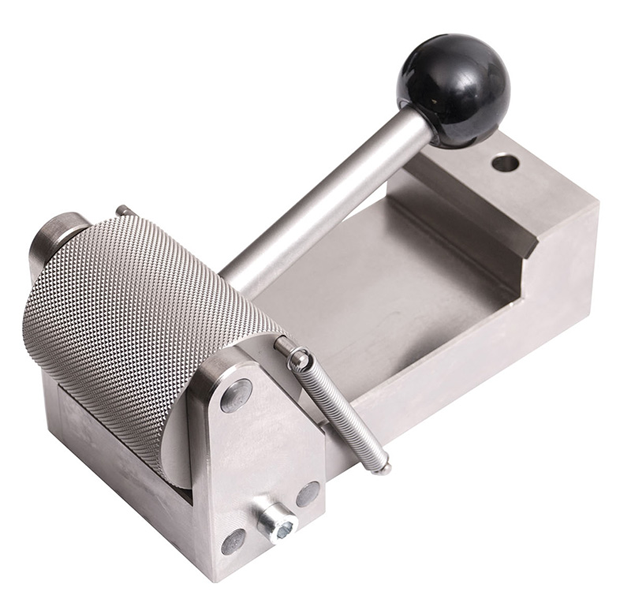

Eccentric Roller Grip

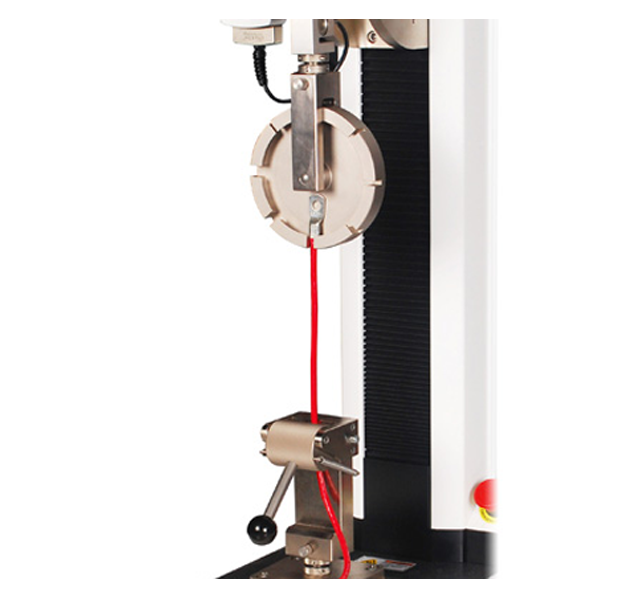

This rugged grip features a serrated cam, for effectively securing wires, plastics, textiles, and other materials in pull testing applications.
Full Description
G1094
This rugged grip features a serrated cam, for effectively securing wires, plastics, textiles, and other materials in pull testing applications.
Includes an integrated eye end mount.
Features
- Spring-loaded cam secures a broad range of materials
- Eye end mounting
Specifications
Capacity:
2,000 lbF [9 kN]
Weight:
7.4 lb [3.4 kg]
Optional Equipments
Eye end adapters Allow for quick grip installation and removal, and prevent grip rotation. Mount to common test frames, load cells, and force gauges.
Dimensions
