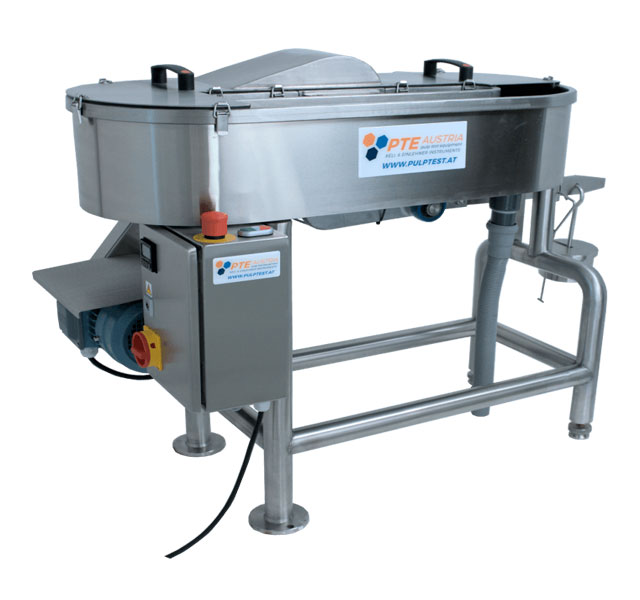

Laboratory Valley Beater
Valley-type laboratory beater for pulp refining ahead of handsheet forming and testing.
Full Description
TYPE “VALLEY”
CODE: P.505.023
USAGE
For beating pulp according to standardized conditions (360 g).
DEVICE DESCRIPTION

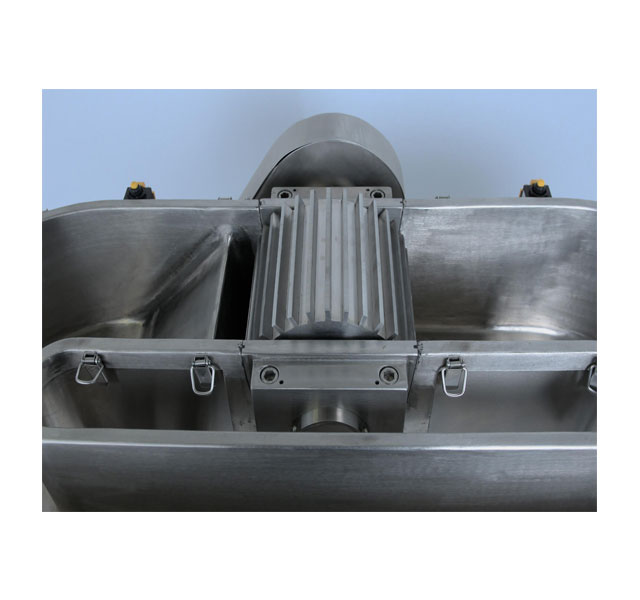

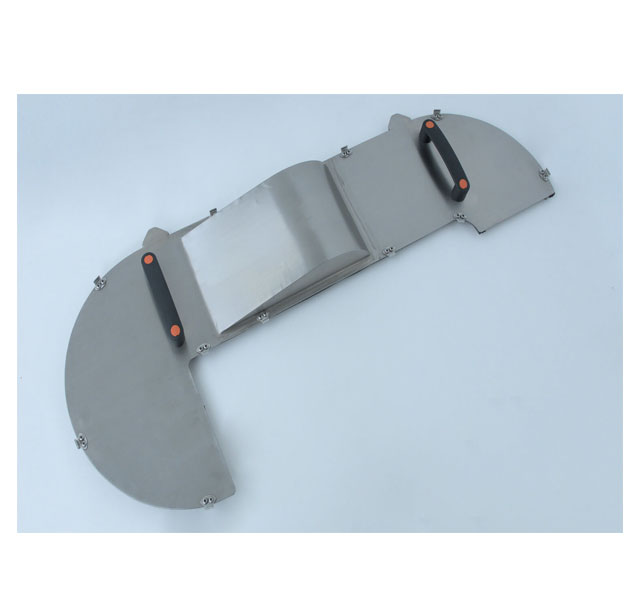

The laboratory beater type “valley” is entirely made of stainless steel. The container is capable of holding a volume of 23 liters and is capable of beating 360 g of pulp, which can be beaten within one process. The rolls including the bedknife have a width of 152 mm and have a diameter of 190-194 mm. The bedknife consists of seven 3.2 mm thick stainless steel blades. The knives and the bed of the beater are encased by a tank cover in order to ensure safe operation of the device.
FEATURES
- top quality and manufacturing
- entirely made of stainless steel
- premium knives and knife holder made of non-corrosive materials

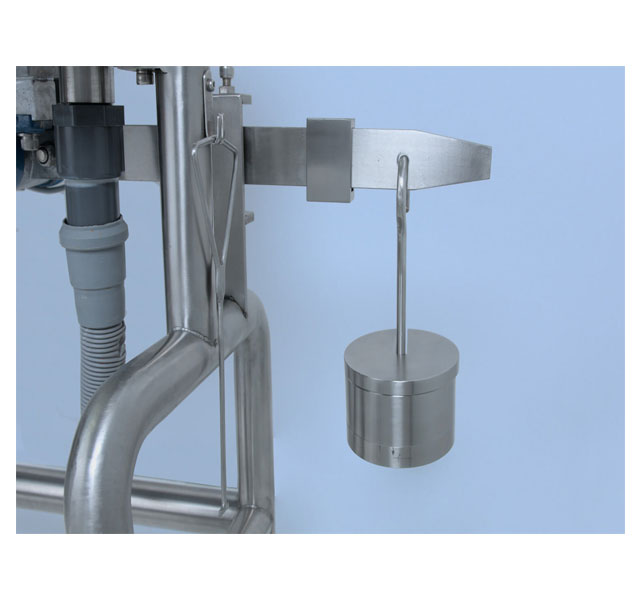

- adjustable beating pressure
- performance according to international standards
Specifications
| Type | Valley beater |
|---|
Applicable standards
TAPPI T200m, T205m; ISO 5246-1; SCAN C25; CPPA C.2
