Series 2 Economical Digital Force Gauges

Force & Torque Measurement

Series 2 digital force gauges are designed for basic tension and compression force testing applications up to 500 lbF (2,500 N). Peak tension and compression readings are reliably captured via the gauges' ±0.5% accuracy and 500 Hz sampling rate.

Request Quote Download Datasheet

Ask a question →

Full Description

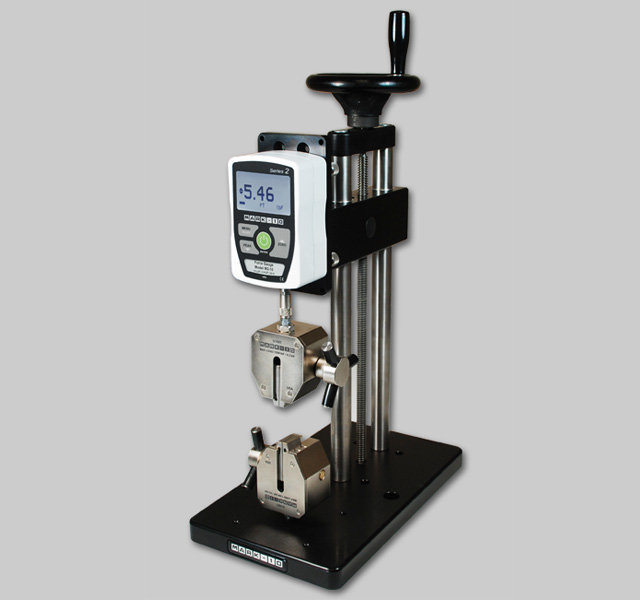

The gauges are overload protected to 200% of capacity. An ergonomic, reversible aluminum housing allows for hand held use or fixture mounting, rugged enough for applications in both production and laboratory environments. Series 2 gauges are directly compatible with Mark-10 test stands and grips.

Features

Calculates peak tension and compression values
3 selectable units of measurement
Ultra-compact, ergonomic housing
Configurable default measurement unit and mode
500 Hz sampling rate

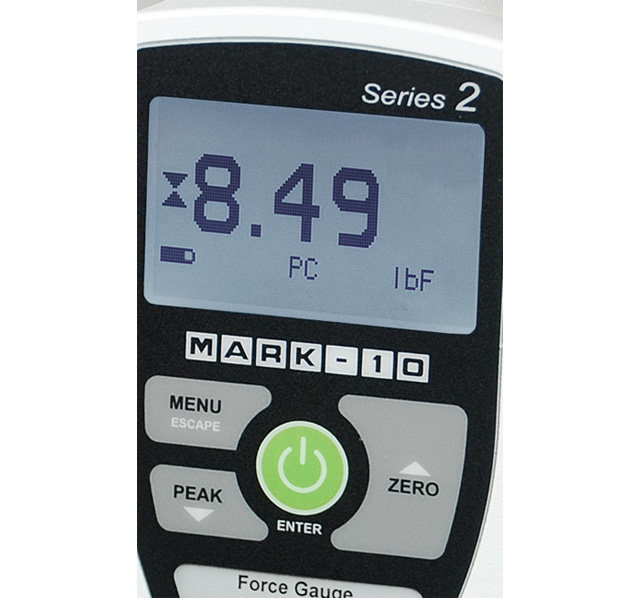

Large, backlit graphic display with auto-dimming
Powered by 9V battery or available AC adapter

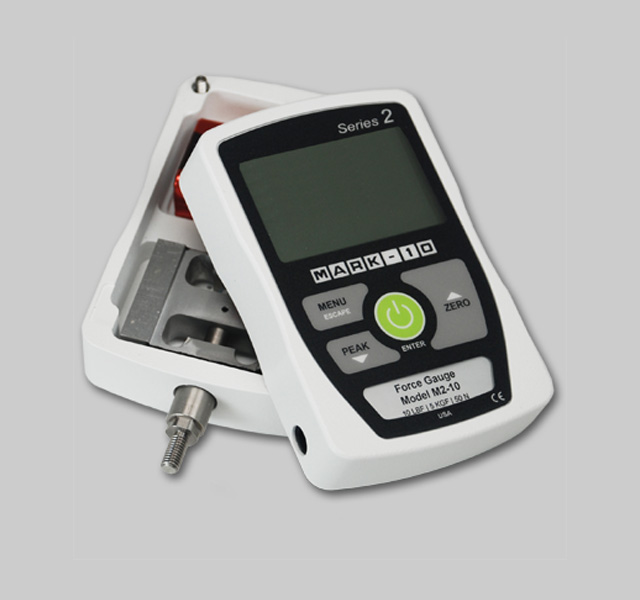

Reversible housing for alternate load cell orientation

Specifications

Accuracy:	±0.5% of full scale
Sampling rate:	500 Hz
Power:	AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery life:	Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use
Measurement units:	lbF, kgF, N
Safe overload:	200% of full scale (display shows “OVER” at 110% and above)
Weight:	M2-2 – M2-100: 0.7 lb [0.33 kg] M2-200 – M2-500: 0.9 lb [0.41 kg]
Shipping weight:	M2-2 – M2-100: 3 lb [1.4 kg] M2-200 – M2-500: 3.2 lb [1.5 kg]
Environmental requirements:	40 – 100°F, max. 96% humidity, non-condensing
Warranty:	3 years (see individual statement for further details)
HS code:	Model no.	HS code:
M2 (all capacities)	9024100000
CERT 12-1049 AC1118 AC1030 AC1031 AC1032 AC1035 AC1052	9024800000
ECCN:	EAR99
Country of origin:	USA

Models

Capacity x Resolution ?
Model	lbF	kgF	N
M2-2	2 x 0.002	1 x 0.001	10 x 0.01
M2-5	5 x 0.005	2.5 x 0.002	25 x 0.02
M2-10	10 x 0.01	5 x 0.005	50 x 0.05
M2-20	20 x 0.02	10 x 0.01	100 x 0.1
M2-50	50 x 0.05	25 x 0.02	250 x 0.2
M2-100	100 x 0.1	50 x 0.05	500 x 0.5
M2-200	200 x 0.2	100 x 0.1	1000 x 1
M2-500	500 x 0.5	250 x 0.2	2500 x 2
