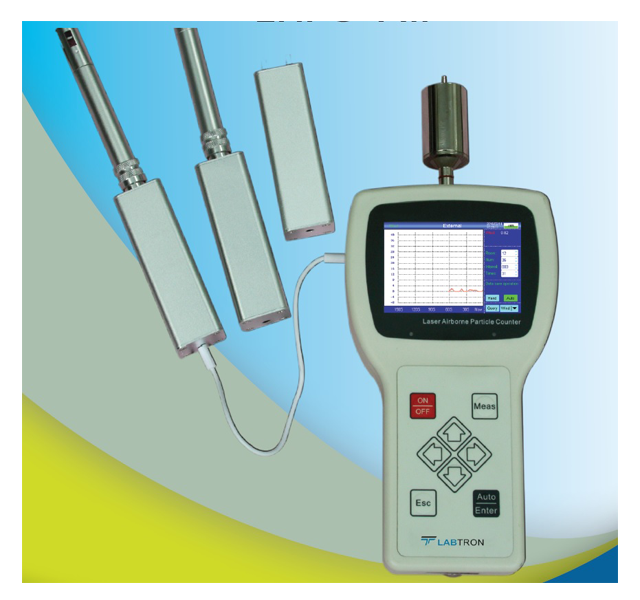

Handheld Airborne Particle Counter LHPC_A11
Handheld airborne particle counter LHPC-A11 is a six channel microcomputer controlled particle counter. It offers a provision of simultaneous particle counting in six different size ranges.
Full Description
Handheld airborne particle counter LHPC-A11 is a six channel microcomputer controlled particle counter. It offers a provision of simultaneous particle counting in six different size ranges. Features like internal audible alarm and user-selectable alarm limits makes this device an ideal choice for clean room applications.
Features
- High-resolution LCD screen for displaying particle count of all channels
- Data conversion : ft3 and m3
- Delay time and zero count
- Large data storage capacity ( 260,000 records )
- Real time error alarm and excess count limit warning
- Battery status indication
- Standard data communication software
- Light weight ABS plastic body
- External printer connectivity
- Provision to export test results to Excel file
Applications
Used in clean room monitoring, indoor air quality testing, filter testing, tracking particle sources; monitoring of biosafety cabinets, clean benches, computer rooms and HVAC system performance.
Specifications
| Particle size channels | 0.3 µm, 0.5 µm, 1.0 µm, 2.0 µm, 3.0 µm, 5.0 µm |
| Flow rate | 0.1 CFM ( 2.83 L/min ) |
| Test class | Class 100 ∼ Class 300,000 |
| Test period | 1 min ∼ 15 min ( 15 levels ) |
| UCL calculation | 0.95 |
| Light source and life | Semiconductor laser ( ? 30,000 hours ) |
| Self-clean time | ≤ 10 min |
| Operating temperature range | 10 °C to 35 °C |
| Operational humidity | ≤ 75 % RH |
| Batteries | Lithium battery |
| Battery life | ? 8 hours of continuous usage |
| Communication interface | USB |
| Dimensions | 245 x 130 x 45 mm |
| Weight | 0.9 kgs |
